Overview

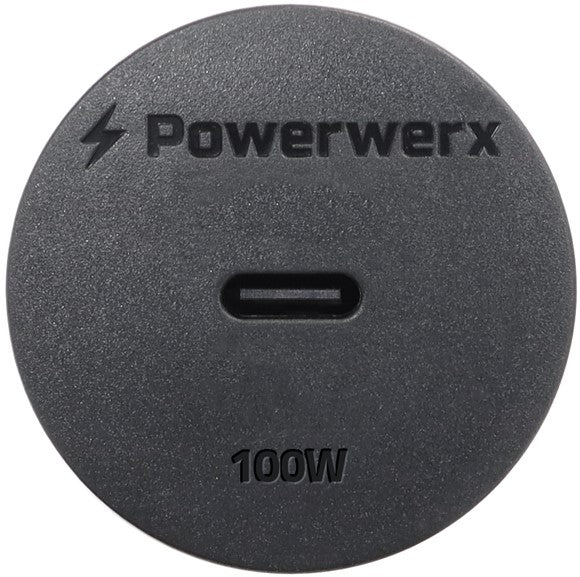

Panel-mount charger with a single USB-C port, delivering up to 100W fast charging. Ideal for MacBook Pro, tablets, phones, and other high-power USB-C devices. Sleek, compact design ensures efficient, reliable power for fixed installations.
Specs
| Operating Voltage |
9-31V DC |
| QC5 Output |
Up to 100W (with input of 13.0 to 31.0V)
Up to 65W (with input of 9.0 to 12.9V) |
| Fast Charging Compatibility |
Power Delivery (PD 3.1 / PPS) – Supports PD3.1 with PPS (Programmable Power Supply) for optimized, efficient charging (USB-C input/output). Voltage Range: 5V / 9V / 12V / 15V / 20V / 28V. PPS Support: 3.3V–21V, 10mV step increments.
BC1.2 & Apple 2.4A – Standard USB charging, compatible with most iPhones and legacy devices
Qualcomm Quick Charge (QC5 / QC4+ / QC3+ / QC3.0 / QC2.0) – Fast charging for many Android phones (especially Samsung, Xiaomi, OnePlus, etc.)
Samsung AFC – Adaptive Fast Charging for Samsung Galaxy devices
Huawei FCP / SCP / HSCP – Supports Huawei Fast Charging protocols (FCP, SuperCharge, and High-Speed Charge)
MediaTek Pump Express (MTK PE) – Fast charging for MediaTek-powered phones
Universal Fast Charging Specification (UFCS) – Unified standard for cross-brand fast charging |
| Terminals |
0.25-inch quick-disconnect blade terminals (also called tab terminals, F2 battery terminals, or Faston-type connectors). |
| Panel Mount Length |
2.38 in |
| Mounting |
Fits 1-1/8" hole size |
| Operating Temperature Range |
-4 to +140°F (-20 to +60°C) |
| Over Voltage Protection |
Yes |
| Over Current Protection |
Yes |
| Over Temperature Protection |
Yes |
| Short Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Includes |
Protective dust cap cover and rear mounting/locking nut |
| Recommend Installation |
Use IFH-12-02 inline blade fuse holder with 10A fuse on 12/24V input |
| Warranty |
6 Months |
