Overview

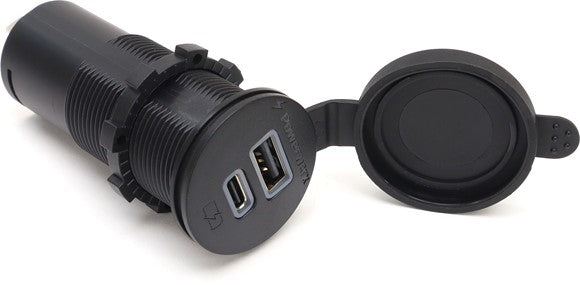

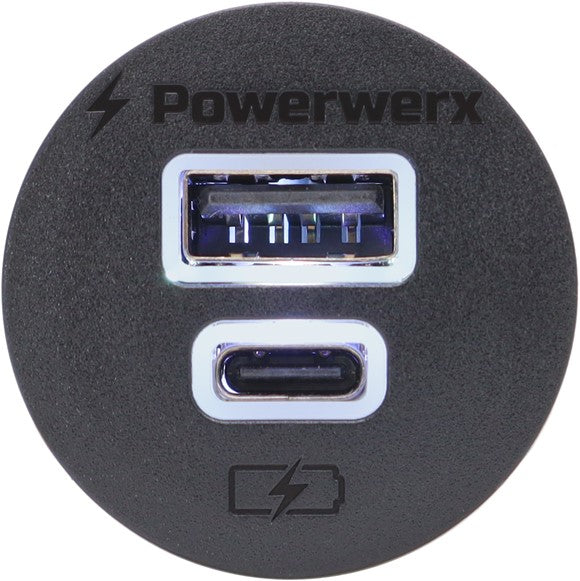

Panel-mount combination USB charger with powerful USB-C port (up to 60W PD) and USB-A port (up to 18W) fast charging. Ideal for laptops, tablets, smartphones, and other USB devices. Durable, compact design delivers reliable, high-speed power for vehicles, boats, RVs, and fixed installations.
Specs
| Operating Voltage |
9-32V DC |
| QC4.0 Output |
Up to 60W (at any input voltage) |
| QC3.0 Output |
Up to 18W (9V/2A, 6V/3A) |
| Fast Charging Compatibility |
Power Delivery (PD 3.1 / PD 3.0 with PPS) – Supports the latest PD protocols for optimized, efficient charging over USB-C (up to 65W). Voltage Range: 5V / 9V / 12V / 15V / 20V.
BC1.2 & Apple 2.4A – Standard USB charging, compatible with most iPhones and legacy devices.
Qualcomm Quick Charge (QC4.0+ / QC3.0 / QC2.0) – Fast charging support for many Android devices. USB-C port supports QC4.0+ while the USB-A port supports QC3.0/2.0 (up to 18W).
Samsung AFC – Adaptive Fast Charging for Samsung Galaxy devices.
Huawei FCP / SCP / HVSCP – Supports Huawei Fast Charging protocols, including SuperCharge and High Voltage SCP.
MediaTek Pump Express (PE1.0 / PE2.0) – Fast charging for MediaTek-powered phones. |
| Terminals |
0.25-inch quick-disconnect blade terminals (also called tab terminals, F2 battery terminals, or Faston-type connectors). |
| Panel Mount Length |
3.25 in (not including wiring or terminals) |
| Mounting |
Fits 1-1/8" hole size |
| Operating Temperature Range |
-4 to +140°F (-20 to +60°C) |
| Over Voltage Protection |
Yes |
| Over Current Protection |
Yes |
| Over Temperature Protection |
Yes |
| Short Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Includes |
Protective dust cap cover and rear mounting/locking nut |
| Recommend Installation |
Use IFH-18-02 inline blade fuse holder with 7.5A fuse on 12/24V input |
| Warranty |
6 Months |
