Overview

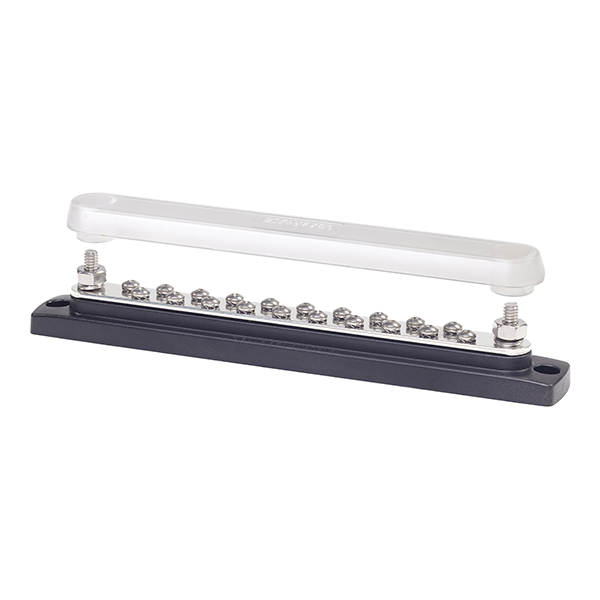

Heavy Duty 100Amp Bus Bar With Screw Terminals. Perfect for a ground bus.

It is widely used for:

• Negative DC grounding distribution
• Auxiliary power distribution
• Battery and inverter systems


Specs

Maximum Voltage	300V AC 48V DC
Number of Screw Terminals	20
Number of Terminal Studs	2
Terminal Type	1/4" Stud #8-32 Screw
Continuous Rating	130A AC 150A DC
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper CDA 110 / UNS 11000
Cover Material	Clear Polycarbonate
Screw Terminal Torque	15 in-lb (1.69 Nm)
Stud Torque	60 in-lb (6.78 Nm)
Weight	0.57lb (0.26 kg)
