Description
Overview

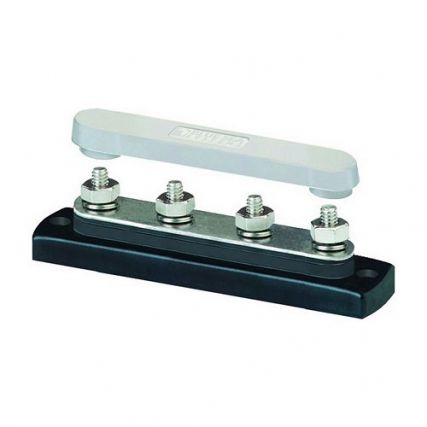

4 Stud 100 amp bus bar 100A AC/DC STUD SIZE:#10-32
This Bus Bar is most commonly known as the MiniBus, a compact 100A common bus bar with cover designed for low-voltage DC electrical distribution systems.
It is widely used for:
- Negative DC grounding distribution
- Auxiliary power distribution
- Battery and inverter systems
Specs
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 4 |
| Terminal Type | #10-32 Stud |
Continuous Rating
|
100A |
| Base Material | Reinforced Polycarbonate |
| Bus Material | Tin-Plated Copper CDA 110/ UNS11000 |
| Cover Material | Clear Polycarbonate |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Weight | 0.18lb (0.08 kg) |
