Overview

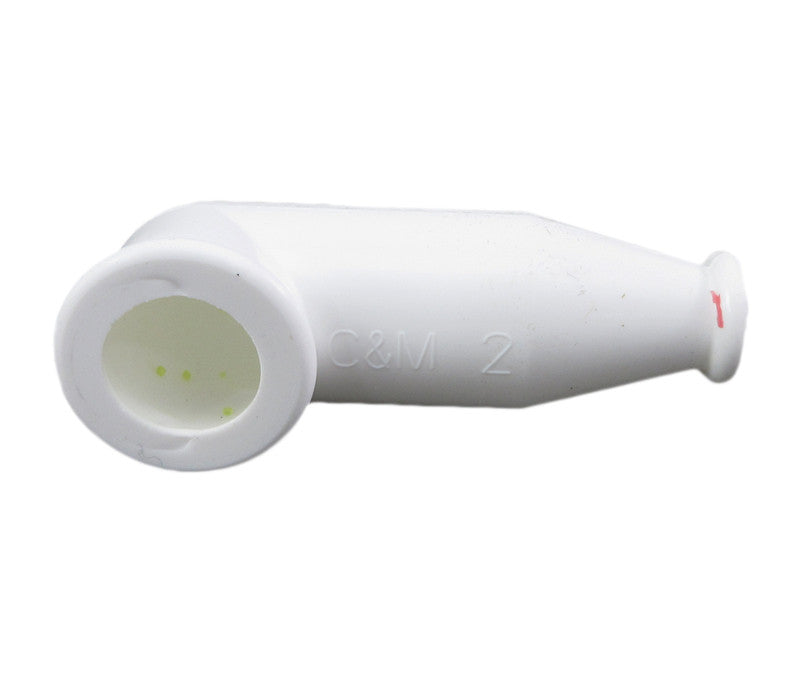

MS25171 Silicone Terminal NippleS (Electrical Insulating Boot)
The MS25171 is a high-performance, military-specification silicone terminal nipple designed to provide reliable insulation and environmental protection for electrical connections. Commonly used in aerospace, defense, and industrial applications, this component helps shield terminals from moisture, dirt, abrasion, and electrical shorting.
Manufactured from durable silicone rubber in accordance with MIL-R-5847 standards, the MS25171 offers excellent flexibility, temperature resistance, and long-term durability in demanding environments. Its right-angle design allows for efficient cable routing and secure coverage over electrical studs and terminals

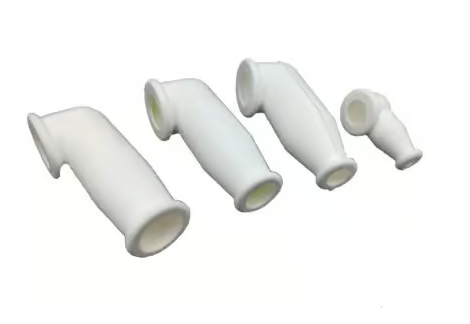

Sizes

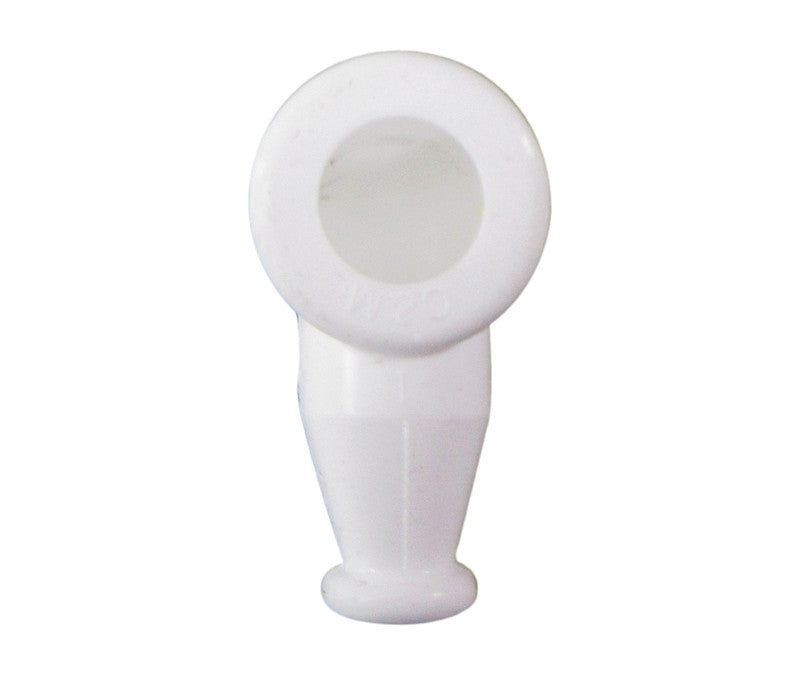

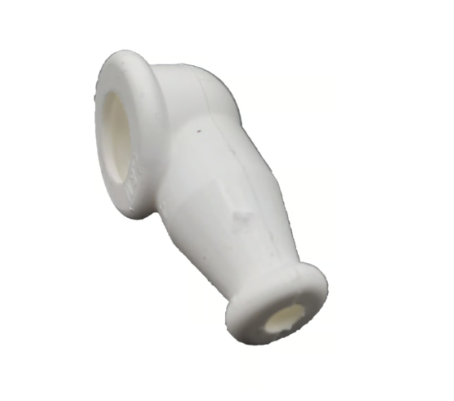

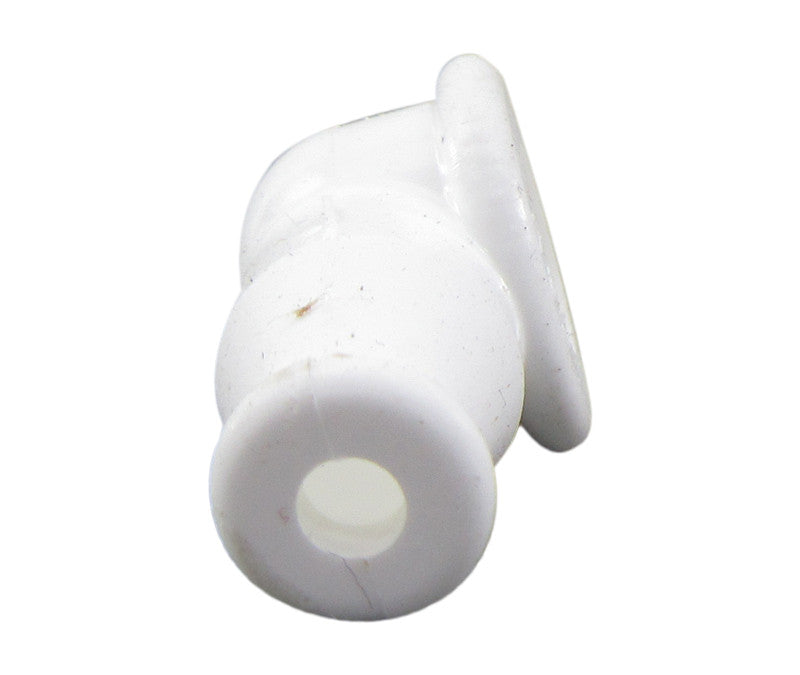

MS25171-1S Has a Length of 1.38" and two openings of .4" AND .16"

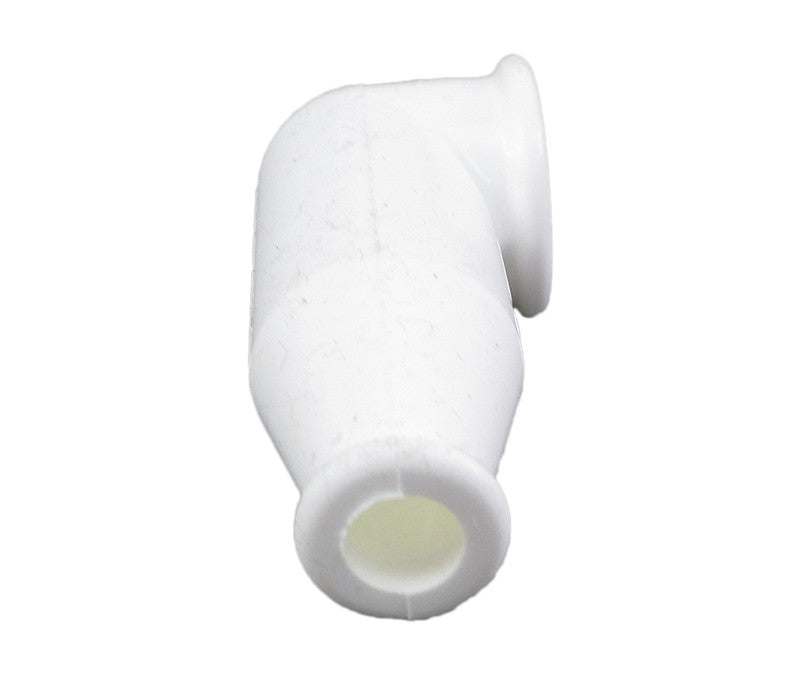

MS25171-2S Has a Length of 2.5" and two openings of .56" AND .31"
MS25171-3S Has a Length of 2.5" and two openings of .56" AND .43"

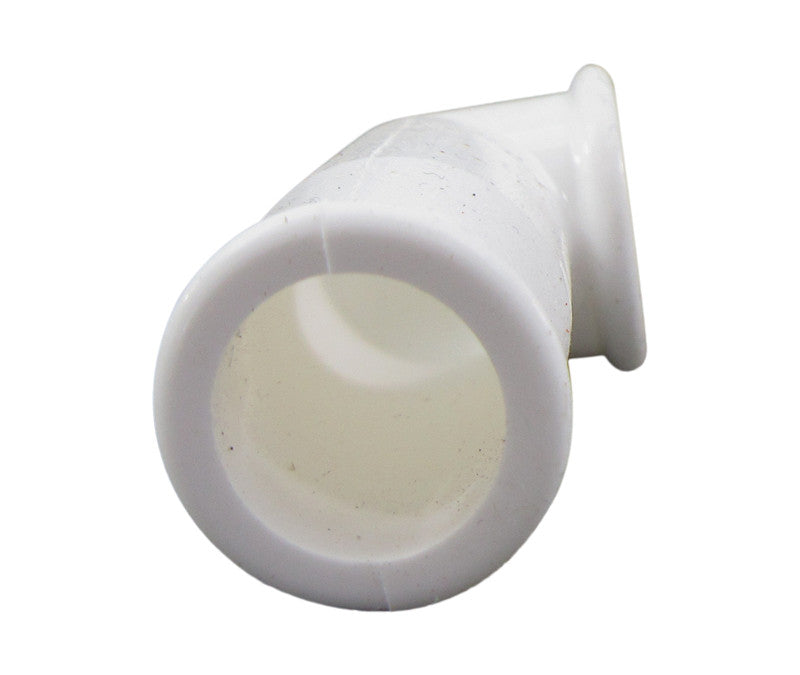

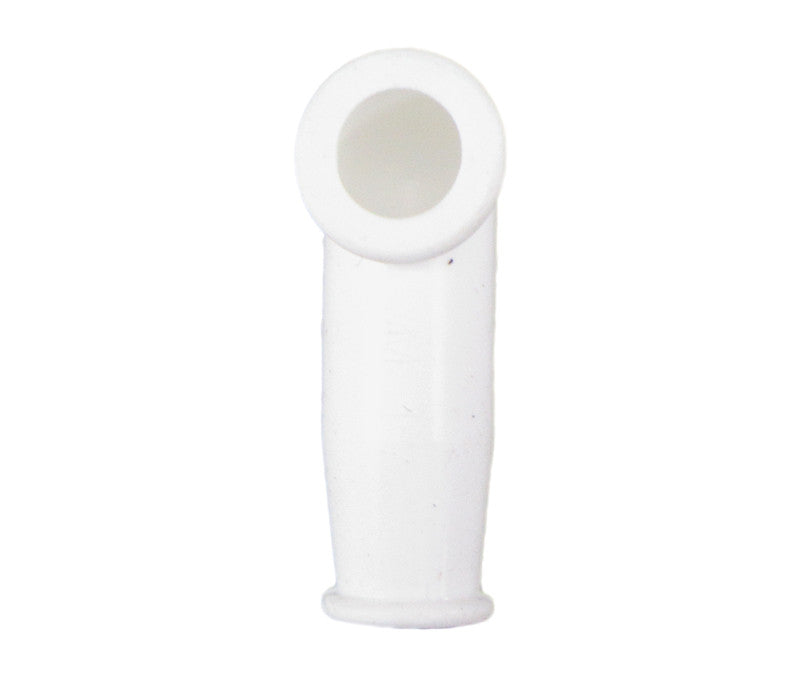

MS25171-4S Has a Length of 2.5" and two openings of .56" AND .56"
Features
-
Mil-Spec Qualified: Meets MS25171 and MIL-R-5847 requirements
-
Superior Insulation: Protects against electrical shorts and environmental exposure
-
High-Temperature Resistance: Performs reliably in extreme heat and cold
-
Flexible Silicone Construction: Maintains elasticity over time without cracking
-
Right-Angle Design: Ideal for tight installations and clean cable management
-
Corrosion Protection: Helps extend the life of electrical connections
