Overview

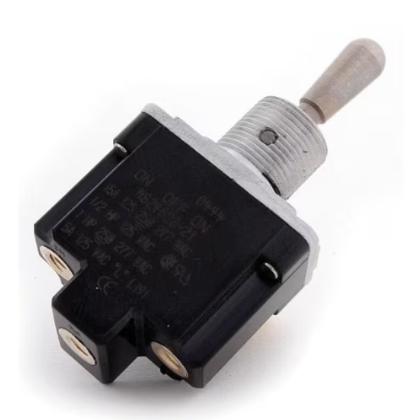

The Honeywell 1NT1-2 is a rugged MICRO SWITCH™ NT Series sealed toggle switch designed for industrial equipment, construction machinery, agricultural systems, marine controls, utility vehicles, and harsh outdoor environments. It is a single-pole single-throw (SPST) OFF-ON toggle switch with screw terminals and environmental sealing for reliable operation in wet, dusty, and high-vibration applications.

A key feature of the 1NT1-3D is its locking lever actuator, which helps prevent accidental switching in critical systems. The locking mechanism requires the operator to intentionally release or pull the actuator before changing positions.

Features

- Screw-terminal wiring
- Panel-mount threaded bushing
- Environment-sealed switching chamber
- Standard round lever actuator
- SPST OFF-ON operation
- Environment-sealed construction
- Screw-terminal connections
- IP67/IP68 environmental sealing
- NEMA 3, 3R, 4, and 13 ratings
- High vibration resistance
- Glove-friendly actuator operation
- UL recognized, CSA certified, and CE approved

Specs

Specification

Details

Part Number

1NT1-2

Manufacturer

Honeywell

Series

MICRO SWITCH™ NT

Circuit Type

Switch Function

OFF-ON

Current Rating

15A AC / 20A max

Voltage Rating

277VAC / 250VDC

Mounting Style

Panel mount

Terminal Type

Screw terminals

Bushing Thread

15/32-32

Environmental Rating

IP67/IP68

NEMA Rating

3, 3R, 4, 13

Operating Temperature

-40°C to +71°C

Actuator Type

Standard round lever
