Overview

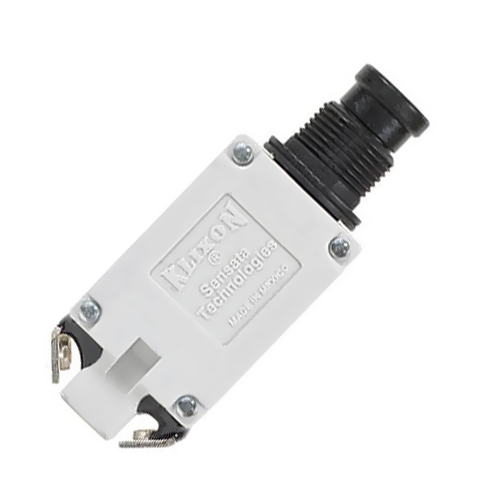

The Klixon 7277-2 is a compact trip-free thermal aircraft circuit breaker designed for low-amperage electrical protection in aviation, aerospace, military-support, industrial, and telecommunications applications. Manufactured by Sensata Technologies / Klixon, the 7277-2 series is widely used in general aviation aircraft as a lightweight alternative to slow-blow fuses
Features
- Miniature push-pull thermal breaker
- Current ratings from 0.5A to 20A
- Lightweight aerospace construction
- High interrupt capacity
- Resistant to shock and vibration
- Designed for aviation electrical panels
- Available in short and long button versions
- Compatible with 28VDC and 120VAC systems
Specs
| Specification |
Details |
| Series |
Klixon 7277-2 |
| Type |
Thermal circuit breaker |
| Current Range |
0.5A – 20A |
| Voltage Rating |
30VDC / 120VAC |
| Operation |
Trip-free push-pull |
| Mounting |
Panel mount |
| Reset Type |
Manual reset |
| Vibration Resistance |
High |
| Typical Lifecycle |
Up to 10,000 mechanical cycles |
| Application Standard |
General aviation / industrial |
