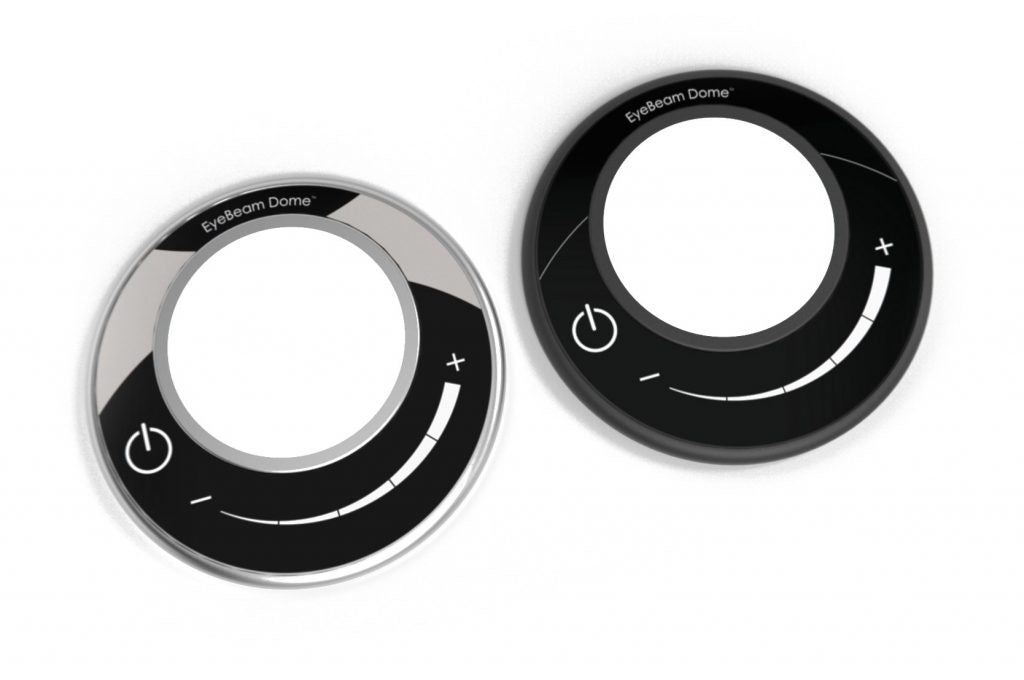

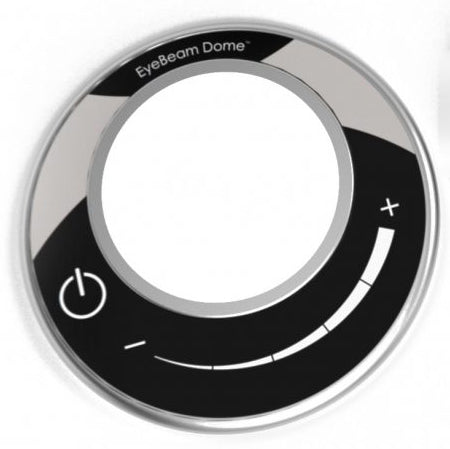

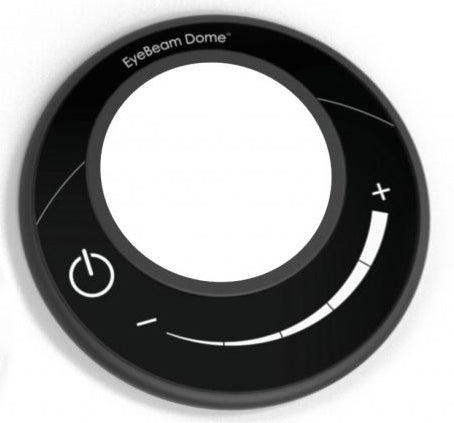

AVEO EyeBeam Dome

AVEO Engineering

For Experimental Aircraft Only

Color: Black

Price:

$264.00

Quantity:

Share this product

Overview

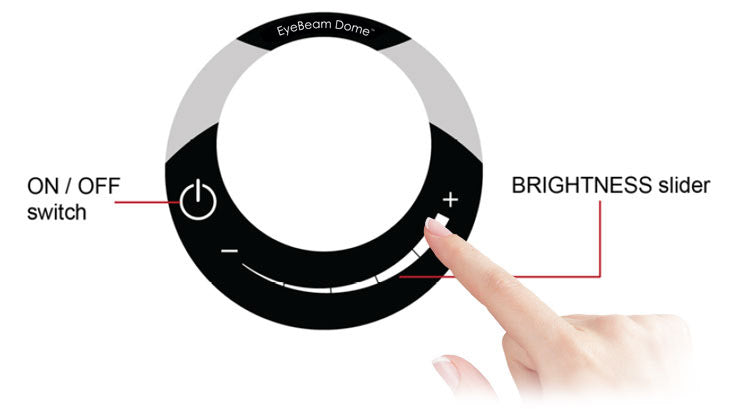

EyeBeam Dome™ - Remote Touch Control Interior LED LightThe EyeBeam Dome was developed to meet the requests of an interior dome light for all aircraft, that would complement the amazing Aveo EyeBeam products, and their unique touch-controls. Long gone are the days of mechanical switches which can corrode and spark, etc. Available with a remote control finger-slide panel for intensity and operation. For Experimental Use Only

Features

Aveo's exclusive touch-control sense operation
Low profile design for sleek appearance
Ability to connect to Aveo's EyeBeam Remote touch panels, one for pilot and one for cabin if desired

Specs

Operating Voltage Range:	9 – 36 VDC
Dimensions:	See technical drawing
Weight:	95 g / 3.35 oz
Input current (Min):	0.04A @14V 0.03A @28V
Input current (Max):	0.16A @14V 0.10A @28V
Input power (Min):	0.6W @14V (typ) 0.8W @28V (typ)
Input power (Max):	2.2W @14V (typ) 2.8W @28V (typ)

Documents

EyeBeam Dome Manual
