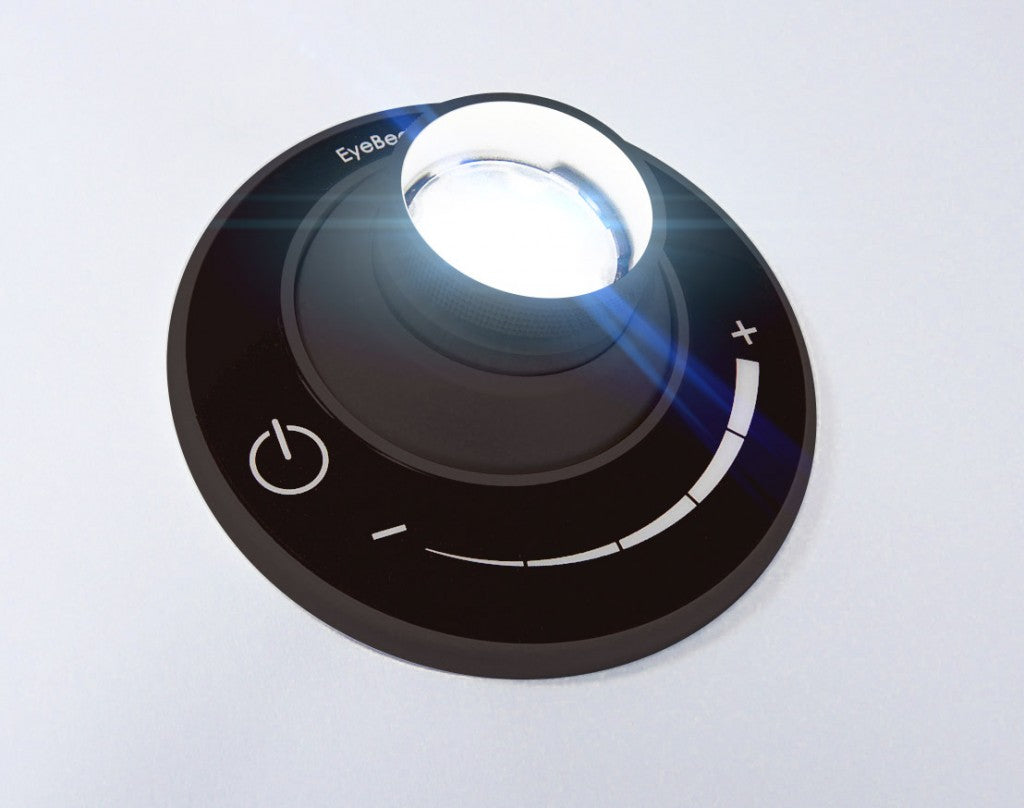

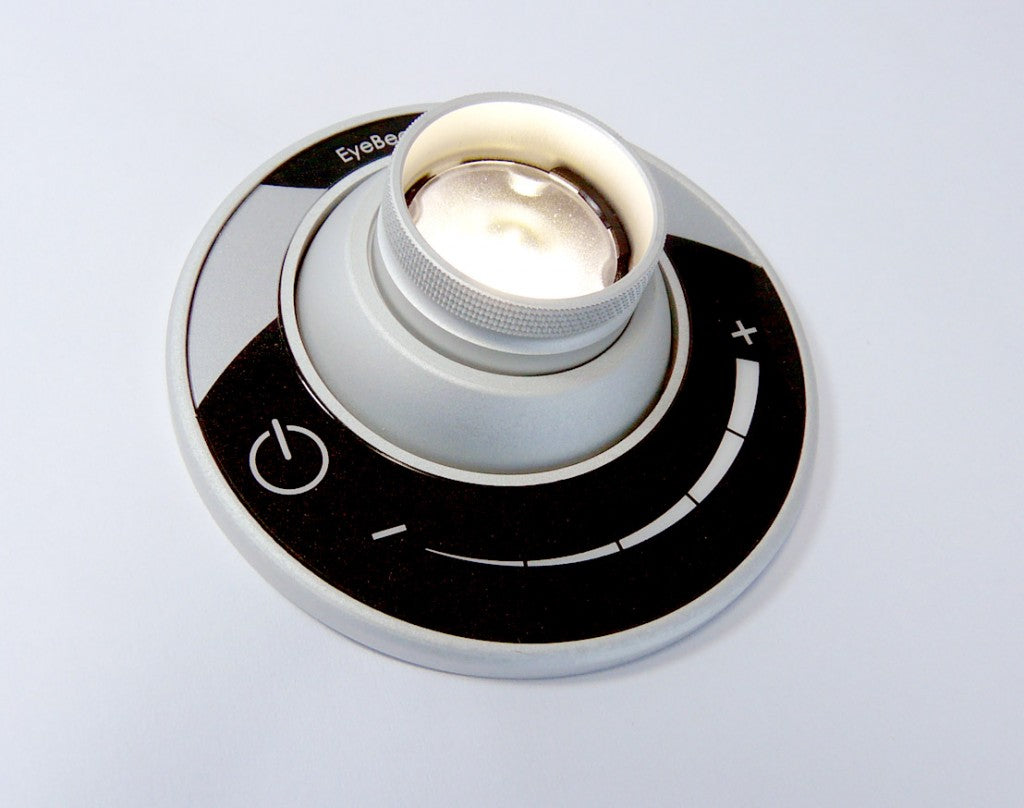

Aveo's incredible capacitive-sensing technology from its highly popular EyeBeam Touch™ products has now been engineered into an even smaller footprint, providing a one-color LED cabin/cockpit/area lighting product for those with limited installation space or only simple lighting needs.
Features
- 9-32 volt input range
- no external power supply
- swiveling light permits light beam control

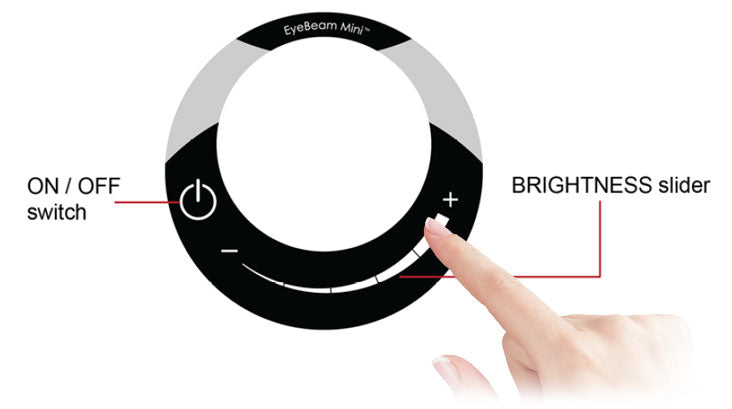

- capacitive sensing touch controls
- no mechanical switches to fail
- Limited Warranty - Product must be registered within 30 days of purchase Here
- unmatched circuit technology
Specs
| Operating Voltage Range: |
9 – 36 VDC |
| Dimensions: |

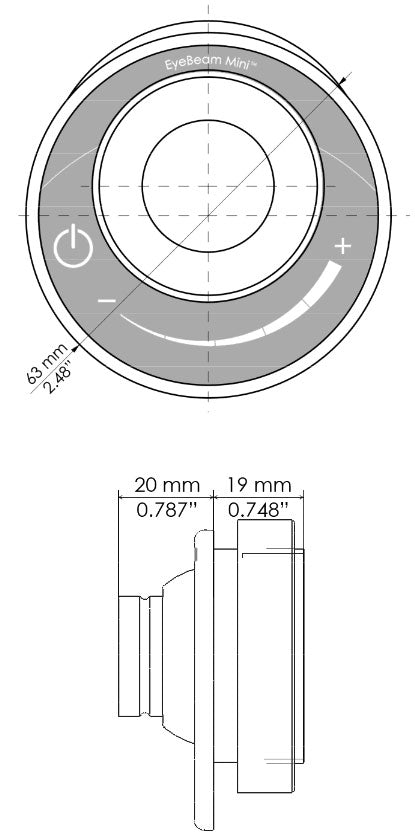

See technical drawing |
| Weight: |
95 g / 3.35 oz |
| Input current (Min): |
0.01A @14V
0.01A @28V |
| Input current (Max): |
0.16A @14V
0.10A @28V |
| Input power (Min): |
0.1W @14V (typ)
0.3W @28V (typ) |
| Input power (Max): |
2.2W @14V (typ)
2.8W @28V (typ) |
| LED Color: |
Neutral White |
| Dimming: |
Yes / 5 levels |
Documents
Eyebeam Mini Installation Manual
