Description
Overview

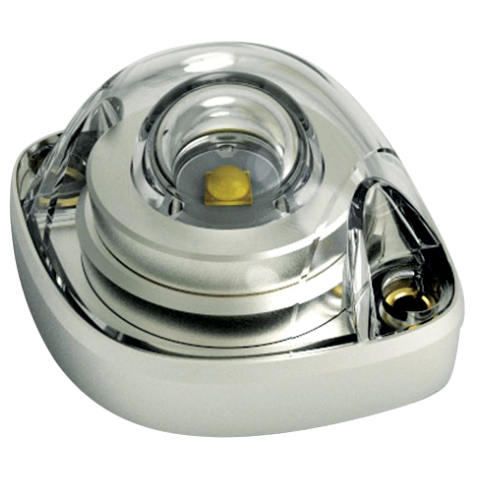

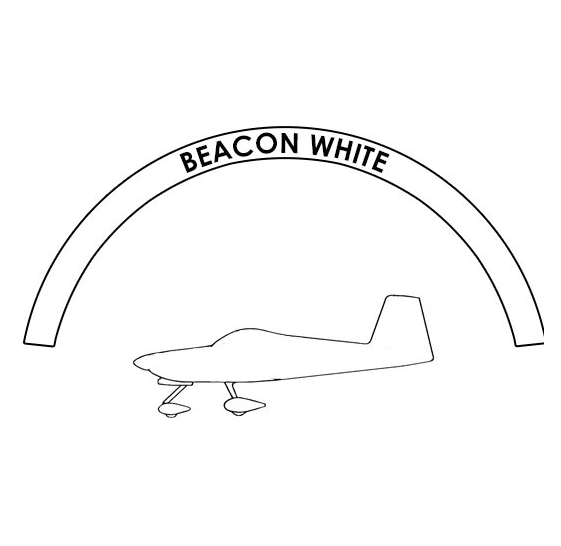

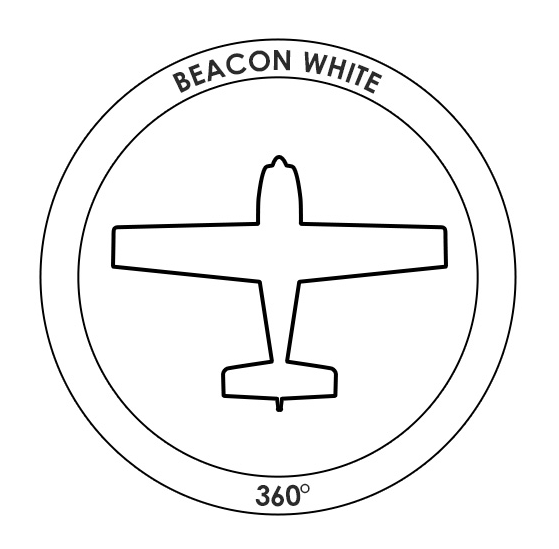

| Developed originally at the request of the world’s leading UAV manufacturers, all of which now utilize Aveo lighting, the MiniMax Ariel is a compact powerhouse of hemispheric light. It is also a great anticollision light to use on the upper and lower fuselage in combination with AveoFlash wing lights due to its incredibly small footprint. |
Specifications
- Weight: 53 g / 1.87 oz
- Operating Voltage Range: 9 – 36 V DC
- Power – position: 2.6 W
- Current – strobe (@12V): 2.0 A
- Current – steeady (@12V): 0.22 A
- Output Power:
- – strobe (Watts): 24 W
- - Steady: 2.6 W
- Flash Rate: 100/50 + 50/50 + 50/950(mS)
- Ambient temperature: from -40°C to +75°C / from -40°F to +167°F
- Overheat protection: Yes, +85°C
- Transient voltage: 60V
- Under-voltage lockout: 9V, not more
- Over Voltage Lockout: 36V, not less
- Waterproof / Vibration-proof / Shock-proof / Dust-proof: YES
- Wiring: Teflon insulation, 500V / Wire length from base of unit 254mm (10") min.
