Overview

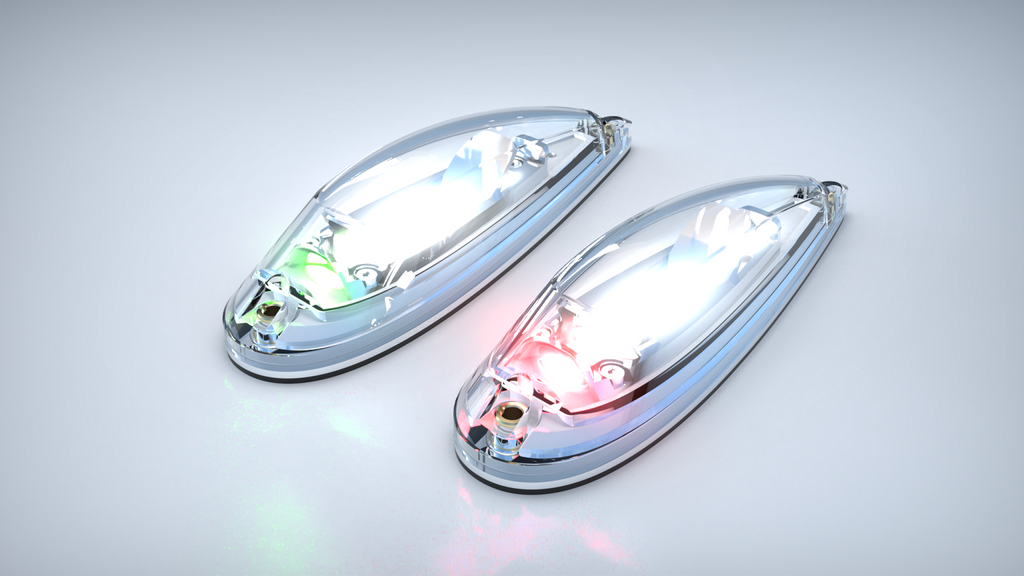

Navigation / Position / Strobe LED light
At only 26 millimeters in height (1.024 inch), Aveo's DayLite Series PowerburstNG wing lights still pack a maximum of brightness into a value light that does not sacrifice anything in performance.
The exclusive and highly advanced optics and chrome reflector system, unmatched power and LED management circuitry, and Aveo's famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
Features
- 3-in-1 Nav/Position/Strobe
- Extremely lightweight
- Unmatched circuit technology
- Waterproof
- Vibration-proof
- Shock-proof
- Dust-proof
- Limited Warranty - Product must be registered within 30 days of purchase Here
Specs
-
Dimensions (mm): 115 mm x 33 mm x 26 mm
-
Dimensions (inches): 4.539“ x 1.307“ x 1.024“
-
Weight: 64 g / 2.25 oz
-
Operating Voltage Range: 9 – 18 V DC
-
Input Current – Position / Nav - green (@14V): 0.28 A
-
Input Current – Position / Nav - red (@14V): 0.23 A
-
Input Current – Strobe (@14V): 2 A peak
-
Output Power - Position / Nav - green: 3.3 W
-
Output Power - Position / Nav - red: 2.5 W
-
Output Power - Strobe: 24 W peak
-
Repetition Rate of Strobe: 50 cycles per minute
- Ambient Temperature: from -40°C to +85°C from -40°F to +185°F
-
Overheat Protection: Yes
-
Recommended size of mounting screw: M3 / DIN 7984
-
Torque requirement for screw M3 / DIN 7984: 0.5 Nm
-
Reverse Polarity Protection: Yes
-
Waterproof, Dust-proof, Vibration-proof: Yes
Documents
Aveo Ultra Daylite Manual
