Overview

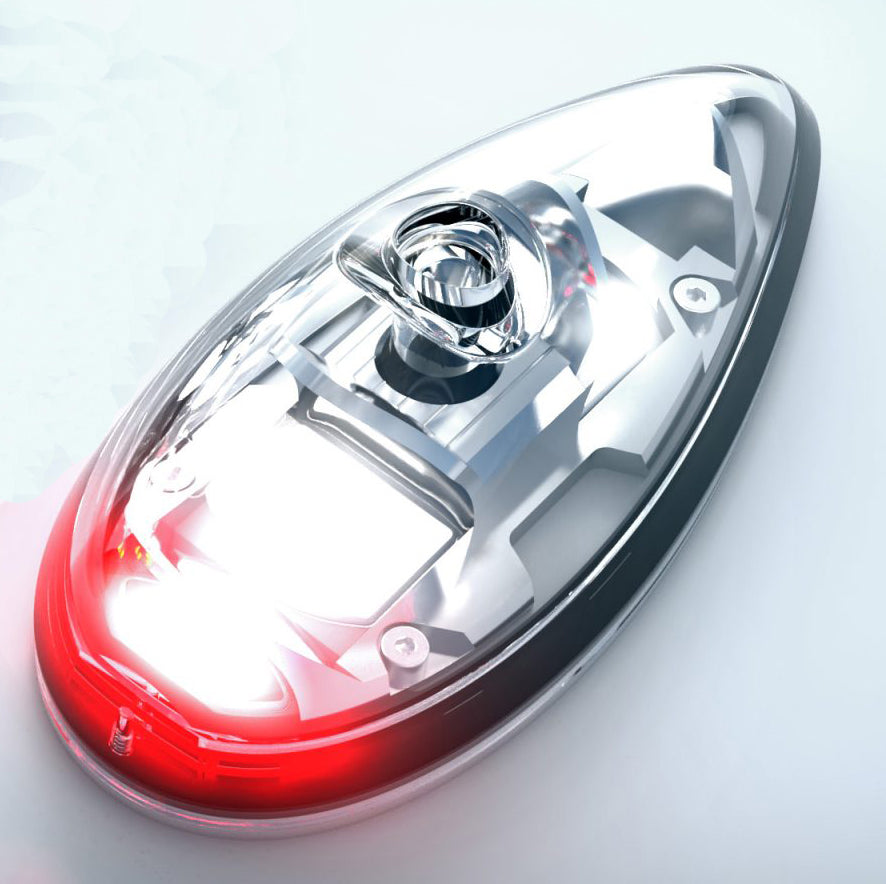

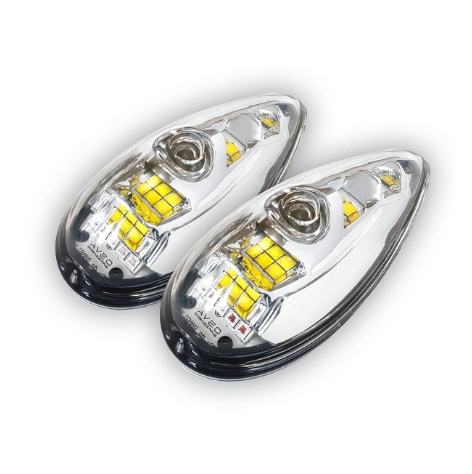

Navigation / Position / Strobe LED light
At only 34 millimeters in height (1.34 inch) the new Ultra DayLite is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!
Features
- 3-in-1 Navigation/Position/Strobe
- Lower, narrow, and shorter than other industry lights
- Lightweight at 127 grams
- 9-36 volt DC input range
- Unmatched circuit technology
- Limited Warranty - Product must be registered within 30 days of purchase Here
Specs
|

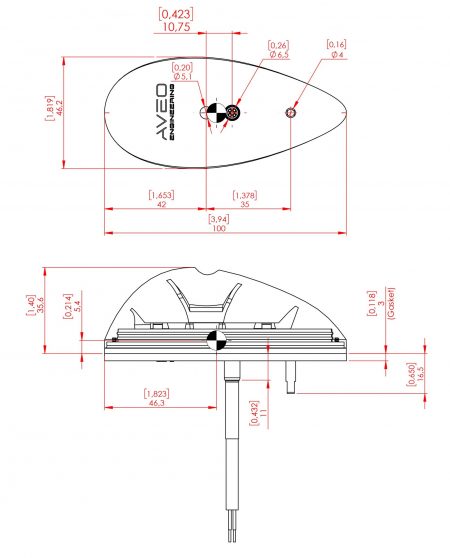

Dimensions (mm): |
100 mm x 46.2 mm x 34.1 mm |
| Dimensions (inches): |
3.94“ x 1.819“ x 1.34“ |
Weight:
|
96 g / 3.386 oz |
| Operating Voltage Range: |
9 – 36 V DC |
Input Power
P/N: AVE-WPSTG-64T Mod(4)

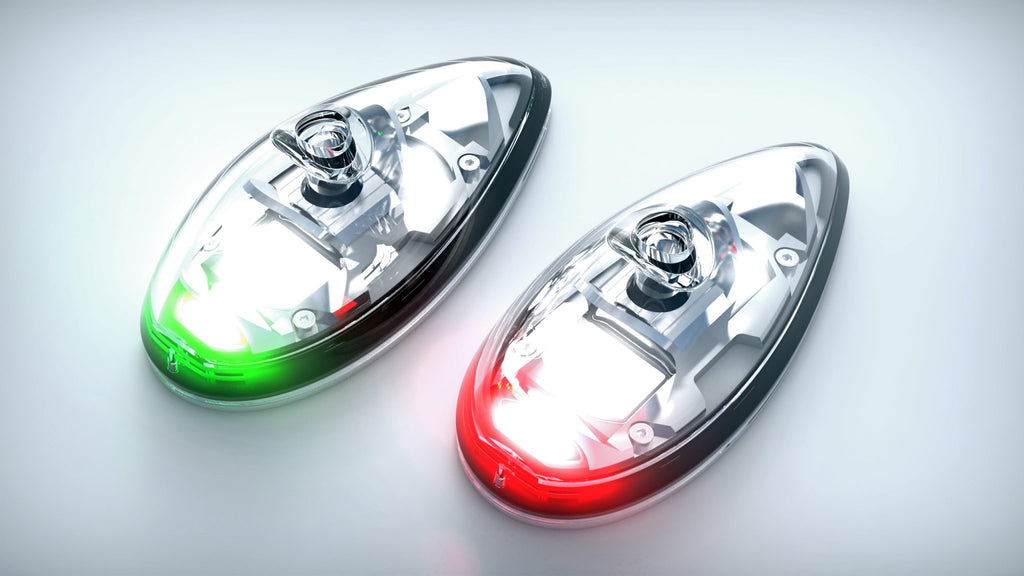

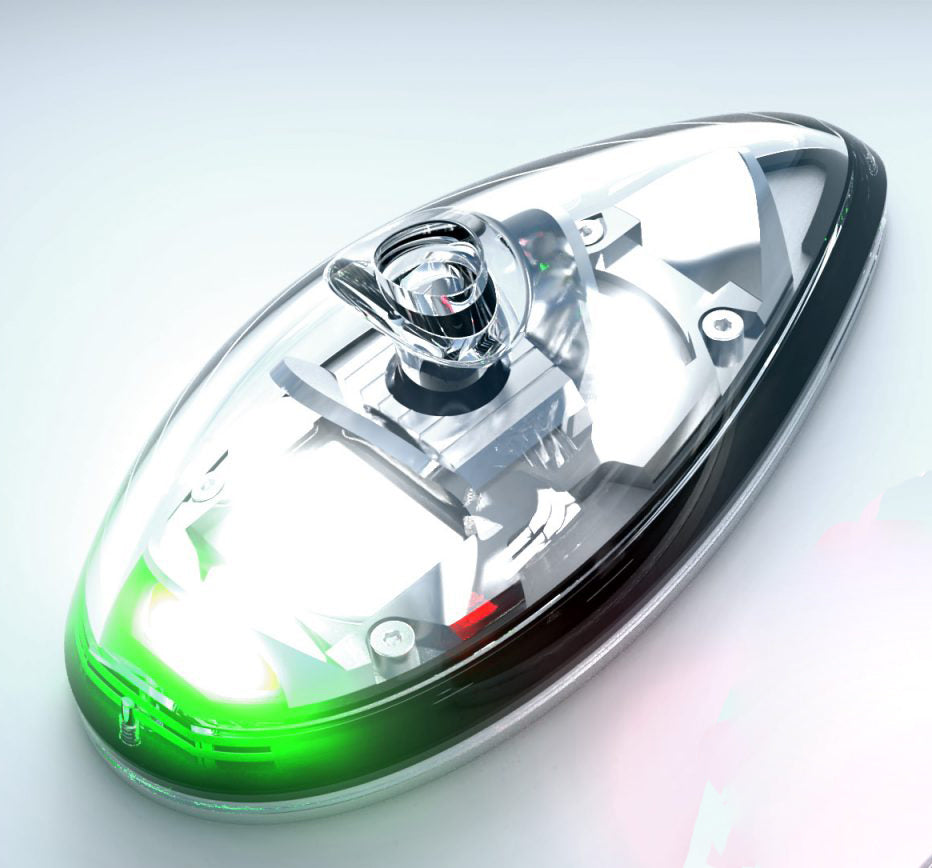

Nav Green / Rear White
Position:
|
9 V / 0.56 A : 5.0 W
14 V / 0.36 A : 5.1 W
28 V / 0.19 A : 5.4 W
36 V / 0.15 A : 5.5 W |
Input Power
P/N: AVE-WPSTG-64T Mod(4)
Strobe:
|
9 V / 6.33 A : 57.0 W
14 V / 2.92 A : 40.9 W
28 V / 1.36 A : 38.1 W
36 V / 1.06 A : 38.2 W
Input Power |
P/N: AVE-WPSTR-64T Mod(4)
Nav Red / Rear White Position:
|
9 V / 0.55 A : 4.9 W
14 V / 0.36 A : 5.0 W
28 V / 0.19 A : 5.3 W
36 V / 0.16 A : 5.6 W |
Input Power
P/N: AVE-WPSTR-64T Mod(4)
Strobe:
|
9 V / 6.49 A : 58.4 W
14 V / 2.97 A : 41.6 W
28 V / 1.38 A : 38.5 W
36 V / 1.07 A : 38.5 W |
| Repetition Rate of Strobe: |
50 cycles per minute |
| Ambient Temperature: |
from -55°C to +85°C from -67°F to +185°F |
|
Overheat Protection: |
Yes (+85°C / +185°F) |
Supplied mounting screw:
Only supplied hardware can be used to install!
|
M5x45 mm (DIN7984) |
Torque requirement for
screw M5x45mm:
|
1.2Nm |
| Over-Voltage Protection: |
Yes |
| Maximum Transient Voltage: |
80 V at 2 sec max, both polarities |
| Under-Voltage Protection: |
Yes |
|
Over-Voltage Protection: |
Yes |
Documents
Aveo Ultra Daylite Manual
