Overview

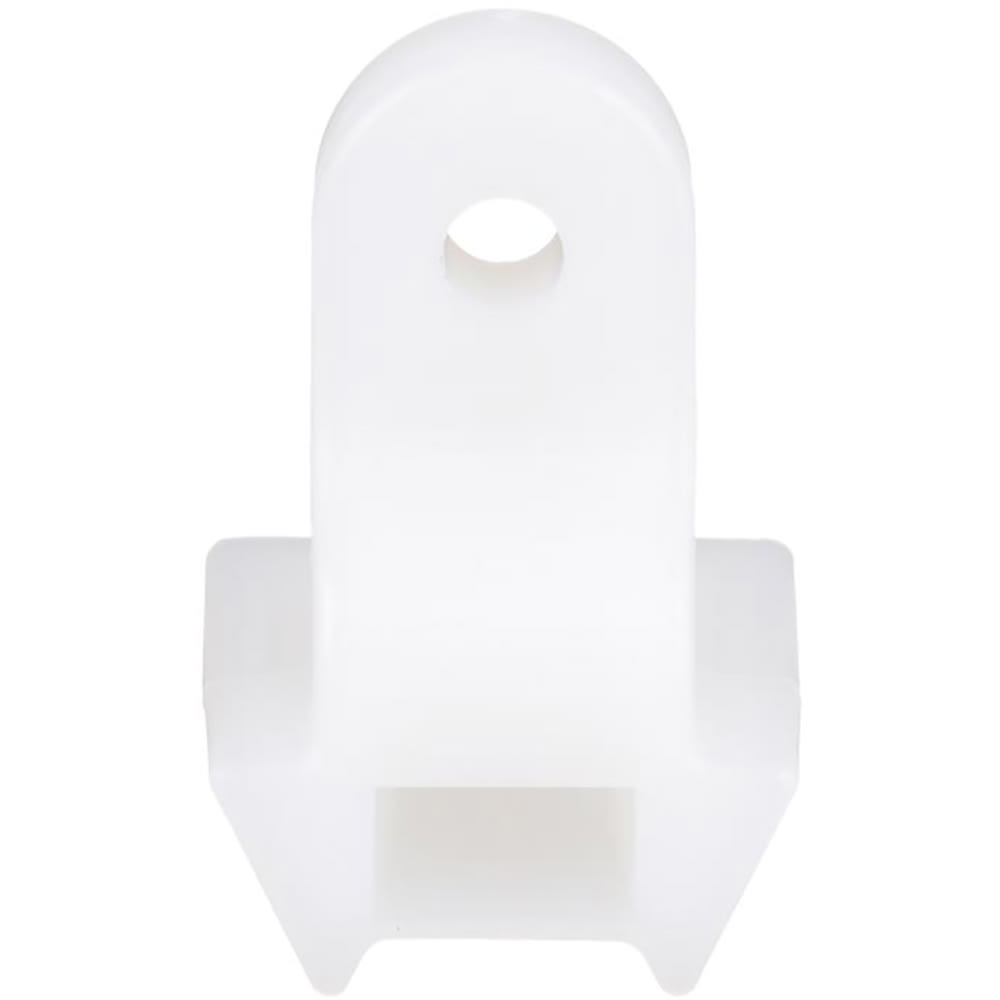

A specialized lightening hole cable tie mount designed to securely route and protect wire bundles through panel openings and structural holes.This mount provides a clean, secure anchor point for cable ties while preventing abrasion from sharp panel edges.
Designed for use with #5 (M3) screws or 1/8" rivets, this mount installs directly into lightening holes, making it ideal for applications where wiring must pass through bulkheads, enclosures, or structural panels. Its durable Nylon 6/6 construction ensures long-term reliability in industrial, automotive, and aerospace environments
Features
-
Lightening Hole Mount Design: Secures cables passing through panel openings
-
Screw or Rivet Mounting: Compatible with #5 (M3) screws or 1/8" rivets
-
Single Opening Configuration: Ideal for controlled cable routing
-
Durable Nylon 6/6: Provides strength, impact resistance, and long service life
-
Abrasion Protection: Helps prevent wire damage from sharp edges
-
Compact Profile: Suitable for tight panel and enclosure layouts
Specs
-
Type: Lightening Hole Cable Tie Mount (Single Opening)
-
Mounting Method: #5 (M3) screw or 1/8" rivet
-
Material: Nylon 6/6 (PA66)
-
Color: Natural
-
Dimensions: ~0.75" L × 0.70" W × 1.08" H
-
Mounting Hole Diameter: ~0.13" (3.81 mm)
-
Operating Temperature: Approx. -60°C to 85°C
-
Compatibility: Works with miniature, intermediate, and standard cable ties
