Overview

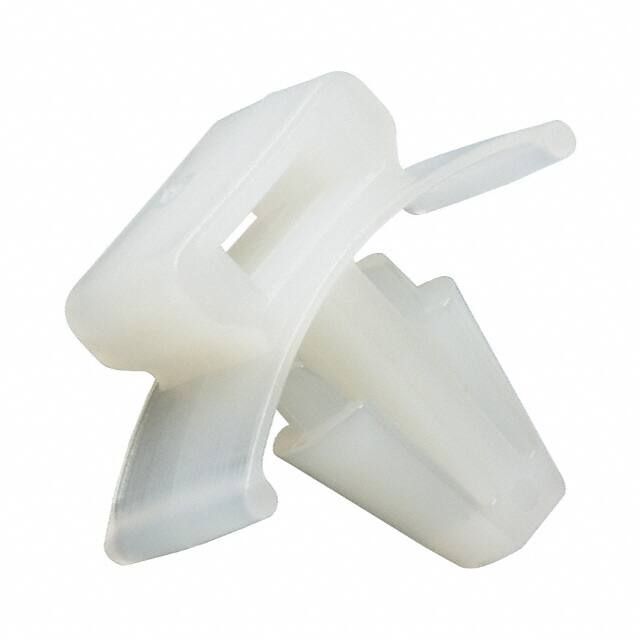

High-performance winged push barb cable tie mount designed for fast, secure cable management without the need for screws or adhesives. This mount installs directly into a pre-drilled panel hole, providing a strong, vibration-resistant anchor point for routing and securing wire bundles.

Its winged push barb design ensures a tight fit in panel applications while allowing installation from one side only—ideal for confined or hard-to-access areas. Constructed from durable Nylon 6/6, this cable tie offers excellent mechanical strength, heat resistance, and long-term reliability in demanding environments.

Features

• Push Barb Mounting: Quick, tool-free installation into pre-drilled holes
• Winged Design: Provides added stability and strong retention
• Single-Side Installation: Ideal where back access is limited
• Durable Material: Nylon 6/6 for strength, wear resistance, and heat tolerance
• Versatile Compatibility: Works with miniature, intermediate, and standard cable ties
• Compact Footprint: Suitable for tight panel layouts

Specs

• Type: Cable Tie Mount (Push Barb, Winged)
• Material: Nylon 6/6 (Polyamide 6.6)
• Color: Natural
• Mounting Hole Size: 0.229" – 0.255" (5.8 – 6.5 mm)
• Max Panel Thickness: 0.105" (2.7 mm)
• Dimensions: ~0.71" L × 0.37" W × 0.62" H
• Operating Temperature: Approx. -60°C to 85°C
• Mounting Style: Push-in (arrowhead / barb)
• Packaging: Typically bulk or packs (often 1000 pcs)
