Overview

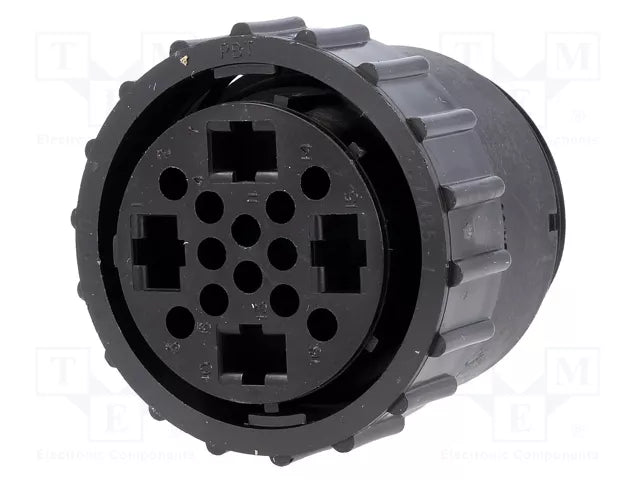

4 Female 16-22 Size XII Contacts and 12 Female Size 16- Shell Size 23

Compatible Pins
16-12 AWG Size XII Contact
24-20 AWG Size 6 Pin
18-14 AWG Size 6 Pin

• Series: CPC (Circular Plastic Connector) Series 4
• Connector Type: Receptacle housing
• Positions: 16 total (12 signal + 4 power)
• Insert Arrangement: 23
• Mounting Type: Panel mount / square flange
• Coupling Style: Threaded
• Contact Type: Female pin contacts (sold separately)
• Compatible Contacts: Type III+ signal contacts and Type XII power contacts
• Voltage Rating: Up to 600 VDC / VAC
• Current Rating: Up to 35 A on power circuits depending on contact type
• Housing Material: Polyamide (PA) / glass-filled thermoplastic
• Flammability Rating: UL94 V-0


Documents

Datasheet
