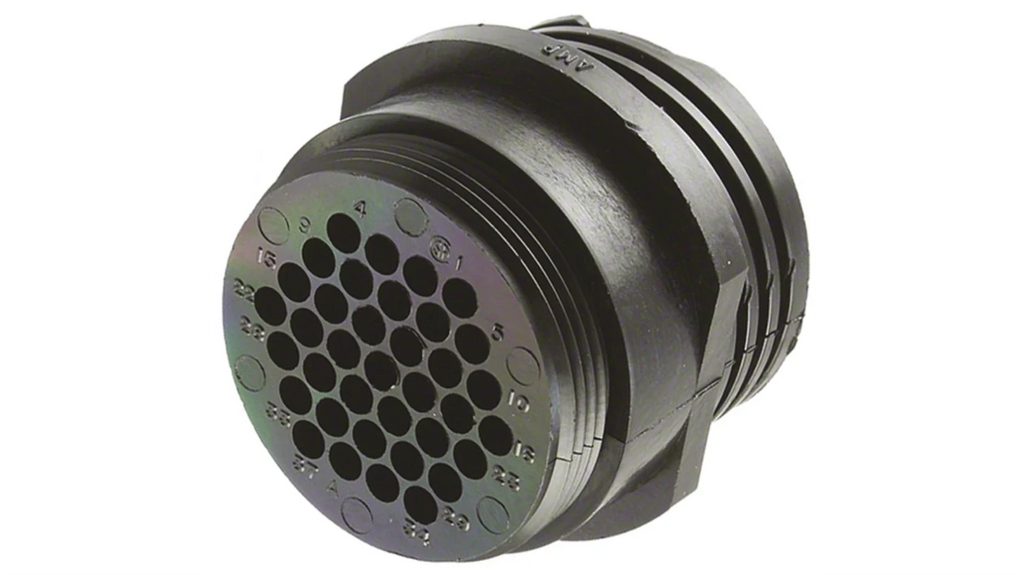

Overview

For Male Pins - Shell Size 23

Compatible Pins
24-20 AWG Size 6 Pin
18-14 AWG Size 6 Pin

• Series: CPC (Circular Plastic Connector) Series 1
• Connector Type: Receptacle housing
• Positions: 37
• Mounting Type: Free-hanging / cable mount
• Coupling Style: Threaded
• Contact Type: Crimp pin contacts (contacts sold separately)
• Shell Size: 23
• Voltage Rating: Up to 600 VDC
• Current Capacity: Up to 13A with Type III+ contacts
• Material: Thermoplastic / Nylon
• Flammability Rating: UL94 V-0
• Operating Temperature: -55°C to +105°C

Documents

Datasheet
