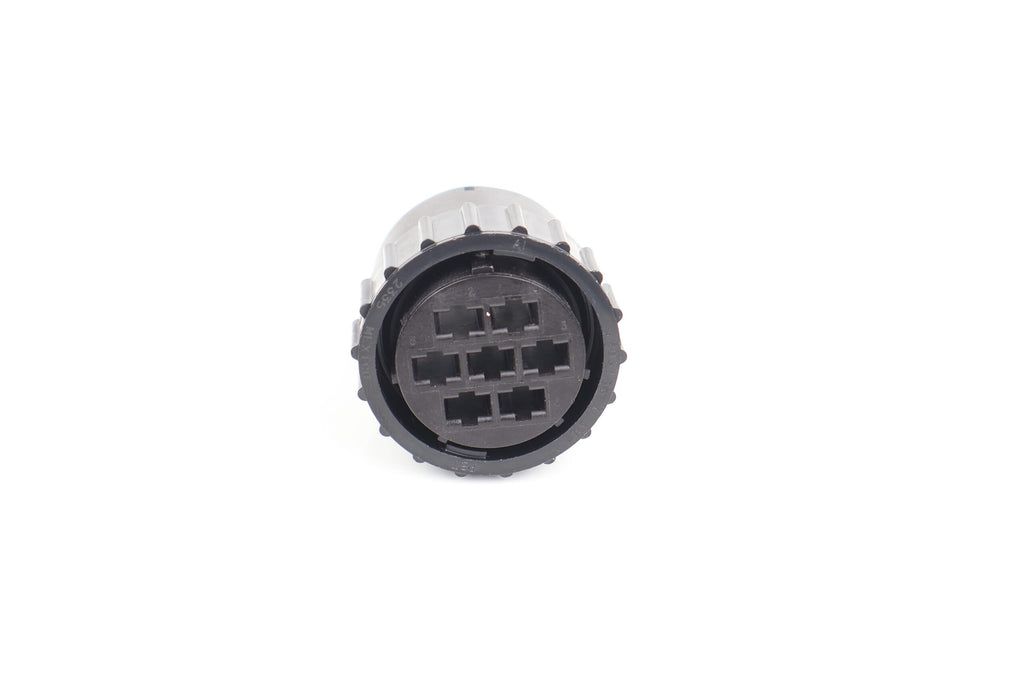

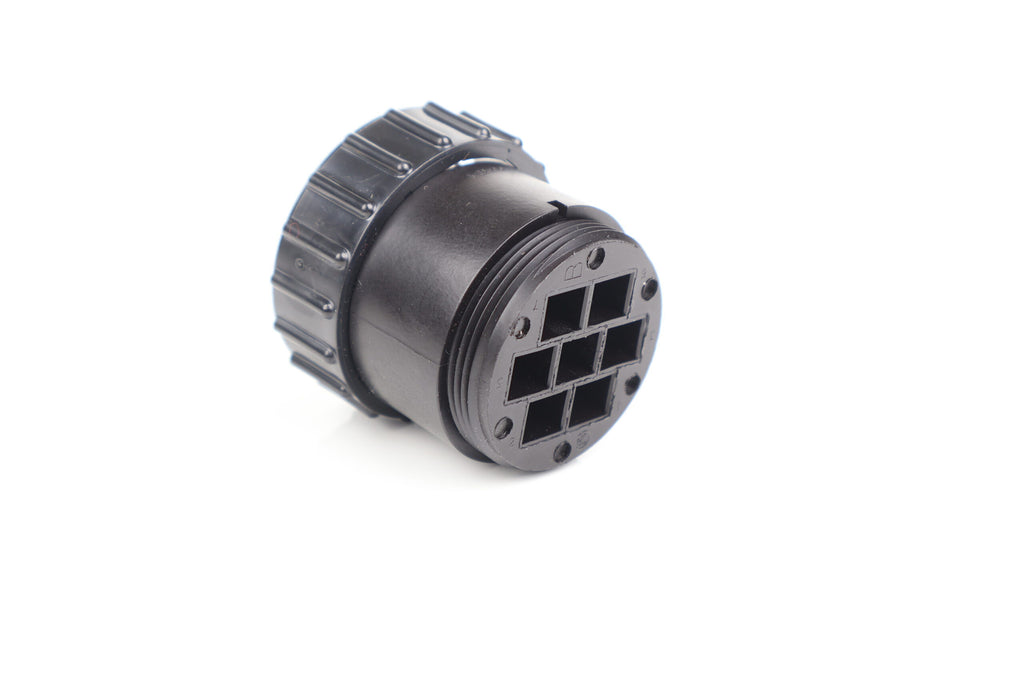

Overview

For Female 16-22 Size XII Contacts - Shell Size 23

Compatible Pins
16-12 AWG Size XII Contact

• Series: CPC (Circular Plastic Connector) Series 3
• Connector Type: Plug housing
• Positions: 7
• Shell Size: 23
• Mounting Type: Free-hanging / cable mount
• Coupling Style: Threaded
• Contact Type: Female socket contacts (sold separately)
• Compatible Contacts: Type XII power contacts
• Current Rating: Up to 35 A per contact
• Voltage Rating: 600 VDC
• Housing Material: Glass-filled Nylon 6/6 thermoplastic
• Flammability Rating: UL94 V-0
• Operating Temperature: -55°C to +105°C
• Ingress Protection: Up to IP65 with proper accessories
