Overview

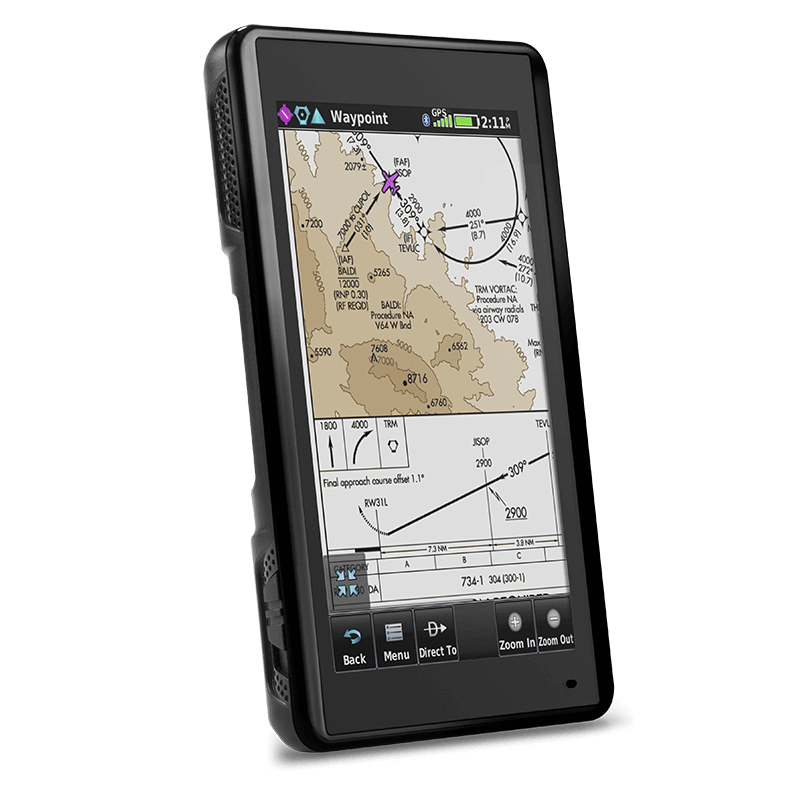

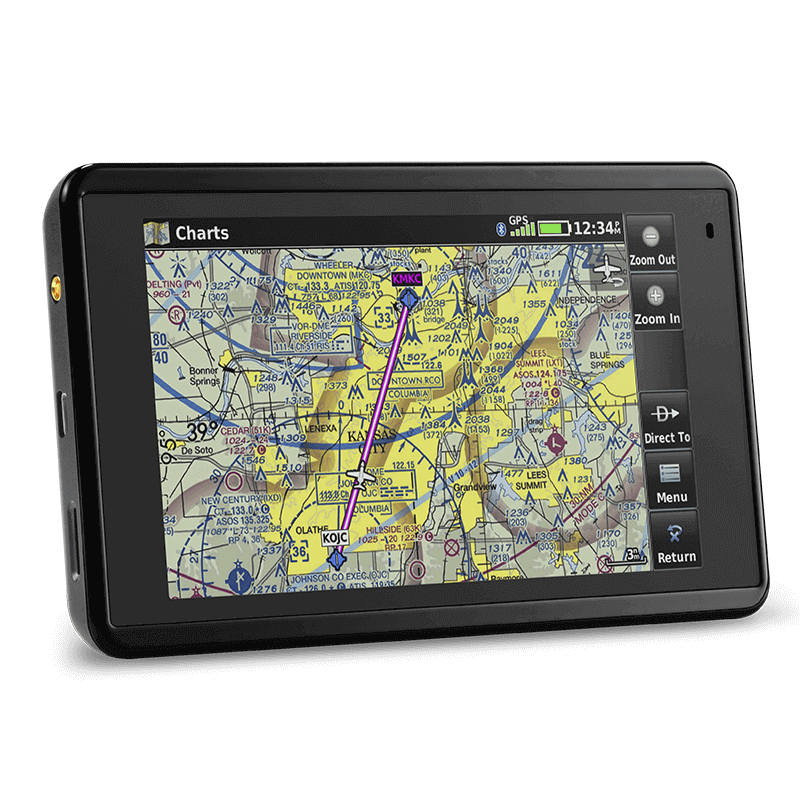

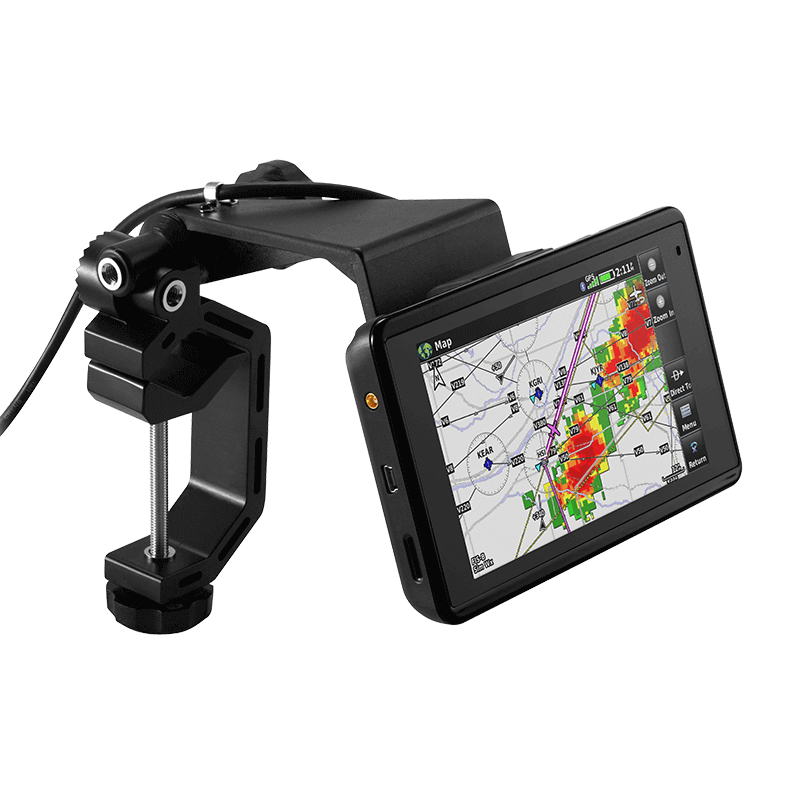

The Garmin aera® 760 is a premium portable aviation GPS designed to deliver powerful navigation, situational awareness, and flight planning capabilities in a compact, cockpit-ready device. With its large, sunlight-readable touchscreen and intuitive Garmin interface, the aera 760 functions as both a dedicated in-flight navigator and a full-featured electronic flight bag (EFB).
Features
-
5” Sunlight-Readable Touchscreen – Crisp, responsive display optimized for cockpit visibility and ease of use
-
Comprehensive Navigation & Mapping – Includes detailed moving maps, flight planning tools, and preloaded charts for VFR and IFR operations
-
3D Vision & Terrain Awareness – Provides a realistic 3D view of terrain, obstacles, and flight environment for enhanced safety
-
Wireless Connectivity (Connext®) – Streams ADS-B traffic and weather from compatible devices via Bluetooth® and Wi-Fi®
-
WireAware™ Obstacle Avoidance – Alerts pilots to nearby power lines and obstacles, ideal for low-altitude and helicopter operations
-
Portable & Rugged Design – Lightweight, durable unit with built-in GPS/GLONASS receiver and up to ~4 hours of battery lif
This device is not approved for primary IFR navigation.
Specs
- Physical dimensions: 5.5”W x 3.4”H x .8”D (14.1 x 8.7x 2.1 cm)
- Display size, WxH: 4.35"W x 2.61"H (11.1 x 6.6 cm); 5.08" diag (12.9cm)
- Display resolution, WxH: 480 x 800; portrait and landscape orientation
- Display type: touchscreen WVGA color TFT with white backlight
- Weight: 8.64 ounces (245 g) with battery; 7.23 ounces (205 g) without battery
- Battery: removable, rechargeable lithium-ion
- Battery life: Up to 4 hours during most daytime conditions, (80% backlight) and wireless connectivity in the cockpit, e.g. GTX 345; up to 6 hours during typical nighttime conditions, (5% backlight) and without wireless connectivity.
- SBAS/WAAS/GLONASS receiver: high-sensitivity with WAAS position accuracy
- Voltage range: 10-35
- IFR or VFR: VFR
- Traffic Information Services (TIS) alerts compatible: yes
- Accepts data cards: yes (microSD™ cards)
