Overview

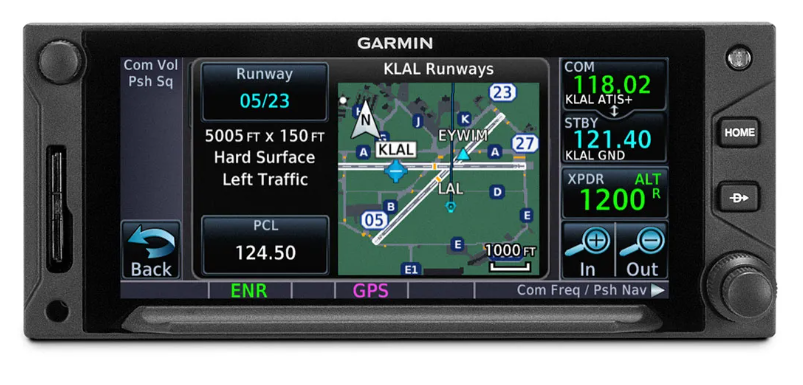

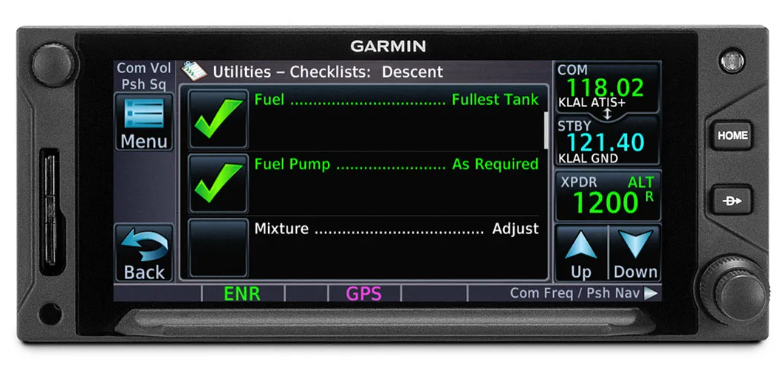

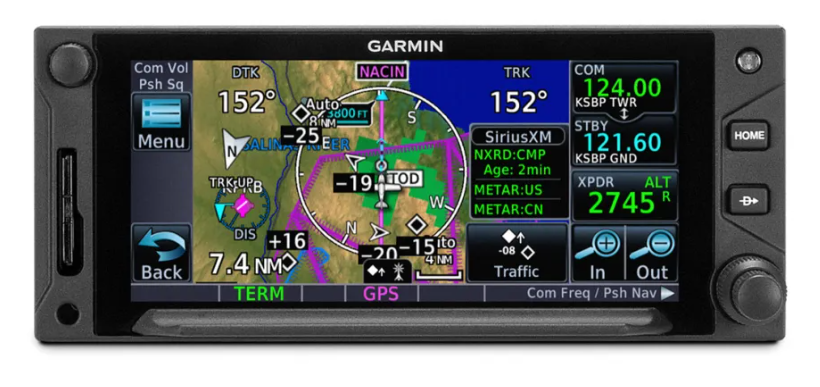

The Garmin GTN 650 is a compact, all-in-one GPS/NAV/COMM/MFD avionics system designed to modernize your cockpit without taking up excess panel space. Combining powerful navigation, communication, and situational awareness tools into a single touchscreen unit, the GTN 650 delivers reliable performance for both IFR and VFR operations. With more pixels, more processing power, more speed and performance, our GTN 650Xi system brings exciting new growth capabilities to the industry’s premier GPS/NAV/Comm/MFD platform. It’s interface-friendly with a wide range of existing avionics, autopilots and flight displays Wirelessly load flight plans and database updates with an optional Connext® link.
DO-IT-ALL TOUCHSCREEN
Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.
LIGHTNING-FAST RESPONSE
Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.
HIGH-RESOLUTION DISPLAY
With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics.
Lead times may vary as some orders are placed with Garmin on-demand
Specs
TSO applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
Display size: 4.9" (125 mm) diagonal
Display resolution: 834 pixels (W) x 370 pixels (H)
Unit bezel height: 2.65" (67 mm)
Unit bezel width: 6.25" (159 mm)
Unit depth with connectors: 11.25" (286 mm) (measured from face of aircraft panel to rear of connector backshells)
Unit weight: 5.5 lbs (2.48 kg)
Input voltage range: 11 VDC - 33 VDC
Operating temperature range: -20° C to 55° C (-4° F to 131° F)
Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
