Description
Overview

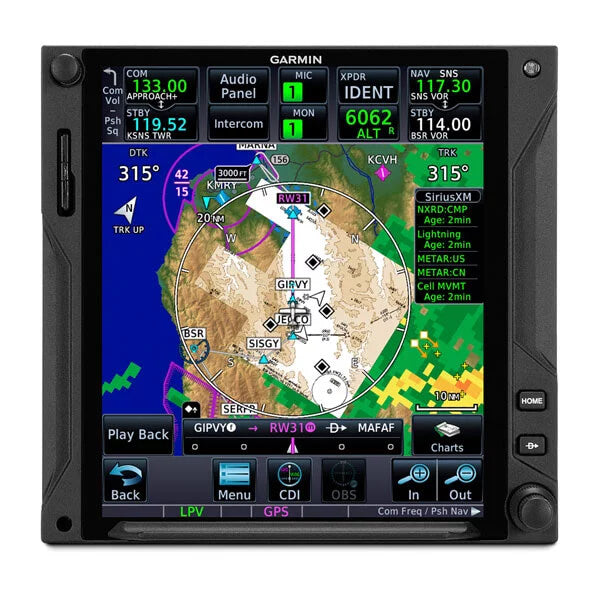

The Garmin GTN 750 is a premium, all-in-one GPS/NAV/COMM/MFD avionics system designed to serve as the central hub of a modern aircraft panel. Featuring a large touchscreen interface and advanced navigation tools, it integrates communication, navigation, and situational awareness into a single, streamlined unit.
With IFR certification and WAAS-enabled GPS, the GTN 750 supports precision approaches and delivers a highly intuitive, pilot-friendly experience—making it one of the most widely adopted upgrades in general aviation.
DO-IT-ALL TOUCHSCREEN
Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.
LIGHTNING-FAST RESPONSE
Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.
HIGH-RESOLUTION DISPLAY
With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics.
Lead times may vary as some orders are placed with Garmin on-demand
Specs
TSO applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
Display size: 6.9" (175 mm) diagonal
Display resolution: 834 pixels (W) x 986 pixels (H)
Unit bezel height: 6.00" (152 mm)
Unit bezel width: 6.25" (159 mm)
Unit depth with connectors: 11.25" (286 mm) (measured from face of aircraft panel to rear of connector backshells)
Unit weight: 7.1 lbs (3.22 kg)
Input voltage range: 11 VDC - 33 VDC
Operating temperature range: -20° C to 55° C (-4° F to 131° F)
Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
