Overview

Utilize Midwest Panel Builders' EIS Harness Kits to speed up your GI 275 EIS installation!

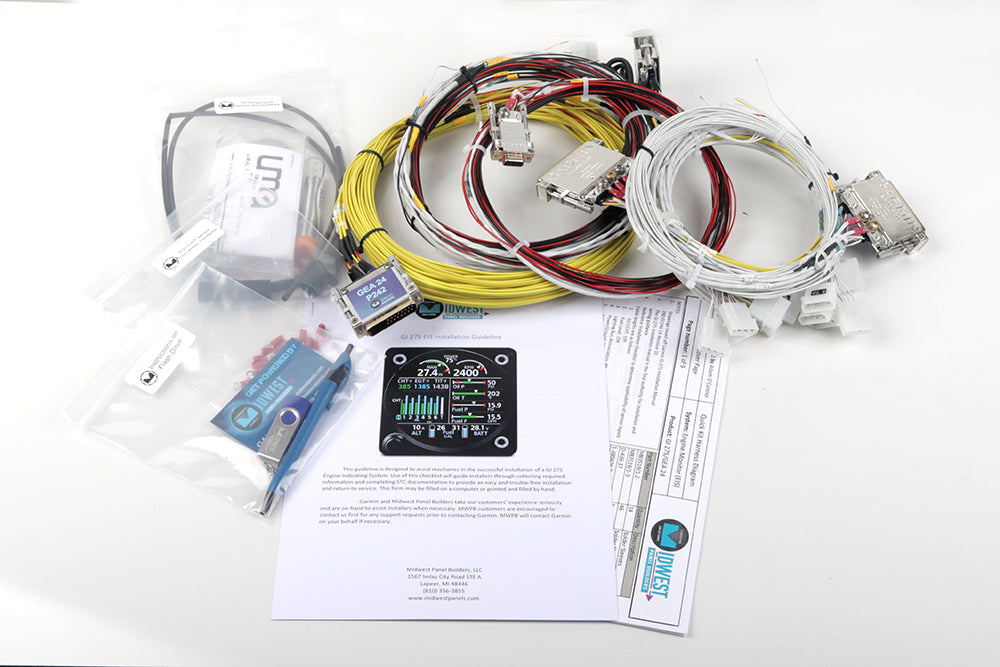

Our harness kits come with the sensors included in Garmin's EIS sensor kit, with the addition of Oil Temperature, as well as detailed wiring diagrams, installation support documents, return to service documents and product STC documentation, including installation and maintenance manuals.

NOTE: Select this harness when you already own the GI 275 EIS and GEA Units.

If you do not own a GI 275 EIS unit, build your Quick Kit for extra savings.

GI 275 Harness Features

• Human-Readable Labeling
• Power/Ground
• Lighting Bus
• Ethernet
• RS-232 (GEA and GNS 4XX/5XX)
• Annunciators
• USB Maintenance Port

GEA Harness Features

• Human-Readable Labeling
• Power/Ground
• RS-232
• EGT/CHT Type-K Wires (12ft)
• Ammeter and Battery Shunt w/ fuses pre-installed
• Bus and Battery Volts w/ fuses pre-installed
• Oil Pressure
• Oil Temperature
• 2-ft leads w/ connectors for following add-on sensors
  • Fuel Pressure
  • Fuel Flow
  • Manifold Pressure
  • Tachometer
  • Carb Temp
  • Turbine Inlet Temp
  • Outside Air Temp
  • Fuel Level
    • Resistive (Compliant with Garmin AD)
    • Digital/Voltage
• Detailed wiring diagrams
