Overview

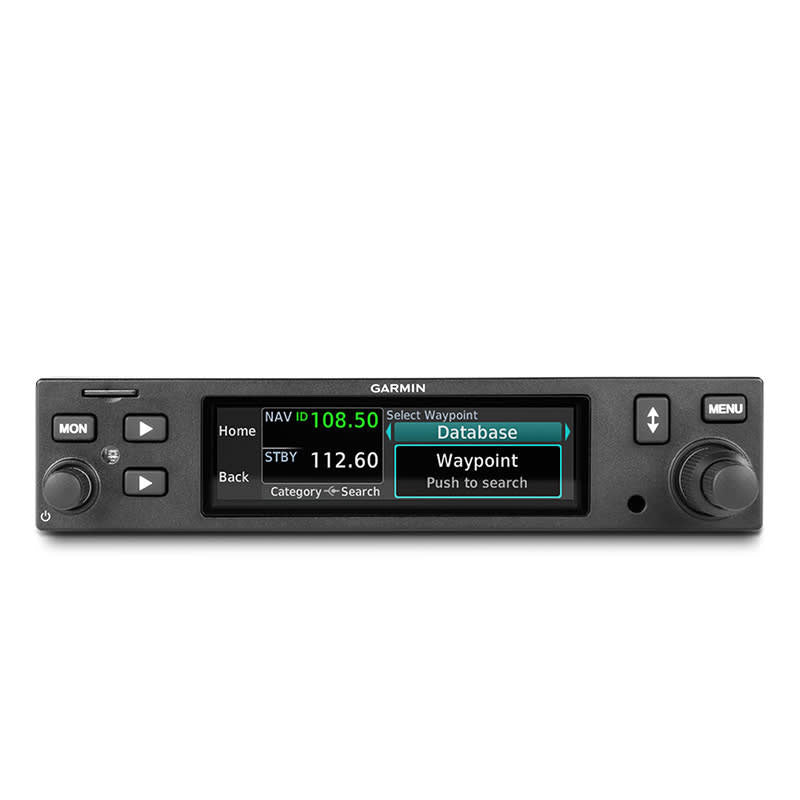

The GNC® 215 NAV/COM Radio delivers reliable navigation and communication in a compact, panel-mounted unit. Designed for general aviation, this radio combines VHF COM and VOR/ILS NAV capabilities in a single integrated system. Features a bright display for easy readability in varied lighting conditions and straightforward controls for quick frequency selection. Ideal for pilots who need dependable avionics without complex setup. Meets TSO standards for certified aircraft installations. Enhance your cockpit with proven Garmin performance and precision.
Specs
Performance:
Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing Frequency range: 118.000 to 136.992 MHz Transmit power: 10 watts (16 watts with optional enablement) Input voltage range: 9 to 33 VDC Operating temperature range: -20 to +55 C Certifications: TSO C169a (transmitting and receiving), TSO C128a (stuck mic), TSO C34e (ILS glide slope receiving), TSO C36e (ILS localizer receiving), TSO C40c (VOR radio receiving)
Physical:
Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm) Weight: 2.3 lbs (1.0 kg) unit only; 3.1 lbs (1.4kg) with mounting rack and connectors Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors
In The Box
- GNC 215
- Installation rack
- Backplate Kit
- One-Time Database Coupon
