Overview

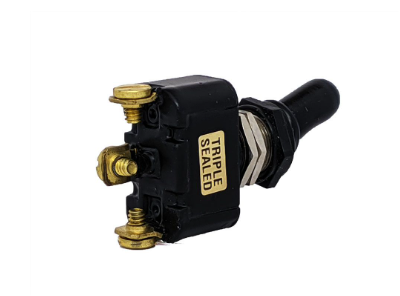

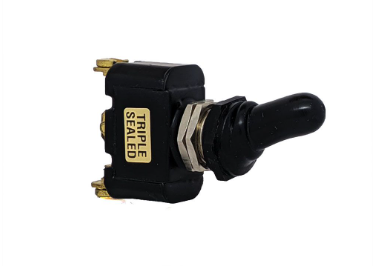

Sealed ON-ON toggle switch designed for harsh-environment 12V electrical systems. It is commonly used where moisture, dust, and vibration resistance are important.
Features
- Triple-sealed construction
- ON-ON maintained switching
- Heavy-duty metal toggle lever
- Screw-terminal connections
- Silver internal contacts
- Lever O-ring seal
- Compact panel-mount design
- High vibration resistance
Triple-sealed system includes:
- Flexible acrylic internal coating
- Clear vapor seal protection
- Rubber lever boot sealing
Specs
| Specification |
Details |
| Switch Type |
Triple-sealed toggle |
| Circuit Type |
SPDT |
| Function |
ON-ON |
| Voltage Rating |
12V DC |
| Current Rating |
20A |
| Terminal Type |
6-32 screw terminals |
| Mounting Hole |
0.500 inch |
| Lever Length |
Approx. 0.687 inch |
| Contacts |
Silver contacts |
| Environmental Protection |
Triple sealed |
