Overview

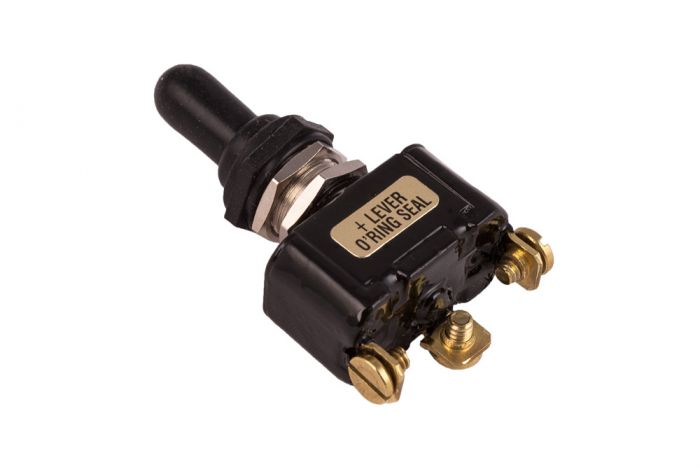

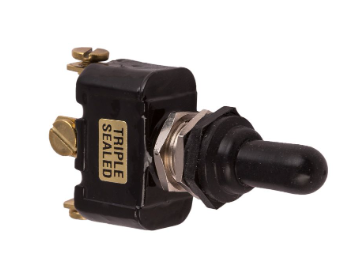

Sealed single-pole ON-OFF-ON toggle switch designed for harsh-environment 12V electrical systems. It is commonly used where moisture, dust, and vibration resistance are important.
Features
- Triple-sealed construction
- ON-OFF-ON three-position switching
- Single-pole switching circuit
- Screw-terminal connections
- 20A current capacity
- Heavy-duty metal lever
- High vibration resistance
- Compact panel-mount design
Triple-sealed system includes:
- Flexible acrylic internal coating
- Clear vapor seal protection
- Rubber lever boot sealing
Specs
| Specification |
Details |
| Switch Type |
Triple-sealed toggle |
| Circuit Type |
Single Pole (SPDT) |
| Function |
ON-OFF-ON |
| Voltage Rating |
12V DC |
| Current Rating |
20A |
| Terminal Type |
Screw terminals |
| Mounting Style |
Panel mount |
| Mounting Hole |
0.500 inch |
| Lever Length |
Approx. 0.687 inch |
| Environmental Protection |
Triple sealed |
