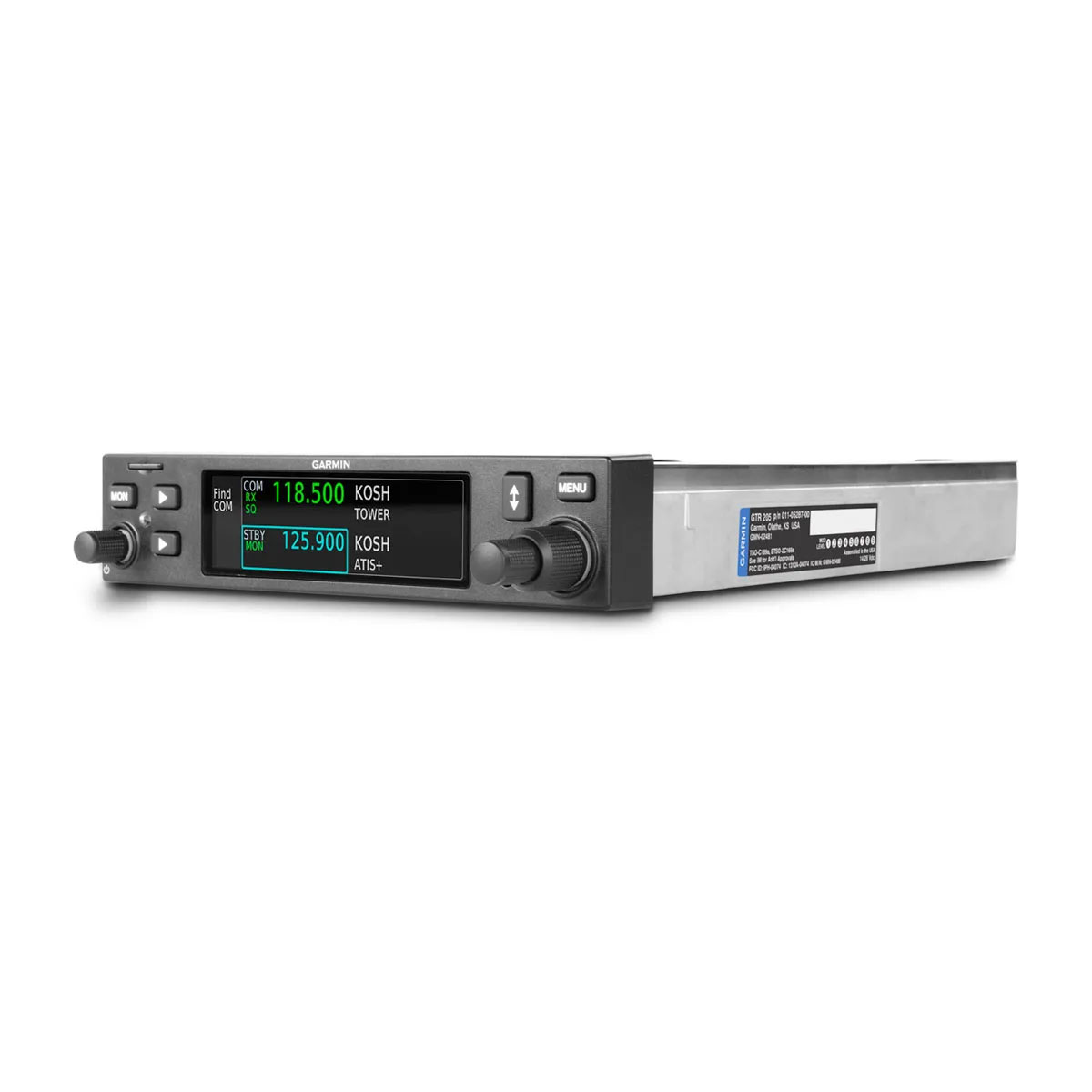

GTR 205X COM Radio and Audio Panel

GTR 205

Performance:

Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
Frequency range: 118.000 to 136.992 MHz
Transmit power: 10 watts (16 watts with optional enablement)
Input voltage range: 9 to 33 VDC
Operating temperature range: -20 to +55 C
Certifications: TSO C169a (transmitting and receiving), TSO C128a (stuck mic)

Physical:

Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
Weight: 2.2 lbs (1 kg) unit only; 2.8 lbs (1.4 kg) with mounting rack and connectors
Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors

GTR 205X

Performance:

Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
Frequency range: 118.000 to 136.992 MHz
Transmit power: 10 watts (16 watts with optional enablement)
Input voltage range: 9 to 33 VDC
Operating temperature range: -20 to +55 C

Physical:

Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
Weight: 2.2 lbs (1 kg) unit only; 2.8 lbs (1.4 kg) with mounting rack and connectors
Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors

Bluetooth

• Bluetooth 5.0 Compliant
• Supported profiles: A2DP and AVRCP (music) and HFP (phone)
• Paired devices stored: 8
• Connections allowed: 1 device
• Supported devices: Phones, tablets, and GDL 51/52 (music). Streaming music from Garmin watches (D2 Delta) is also supported.
• Firmware updates: Free and field loadable by micro-SD card

GTR 205

• GTR 205
• Installation rack
• Backplate kit
• Configuration module
• One-time database coupon

GTR 205x

• GTR 205x
• Installation rack
• Backplate kit
• Pilot’s Guide
• Configuration module
• One-time database coupon
