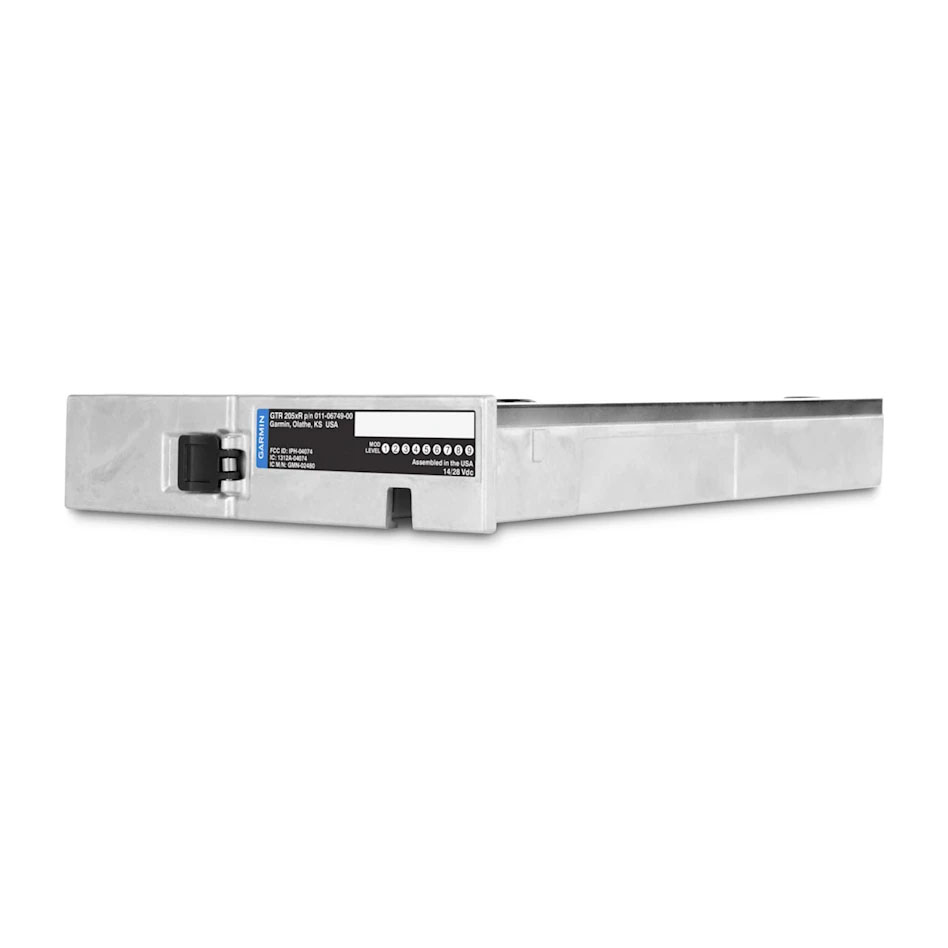

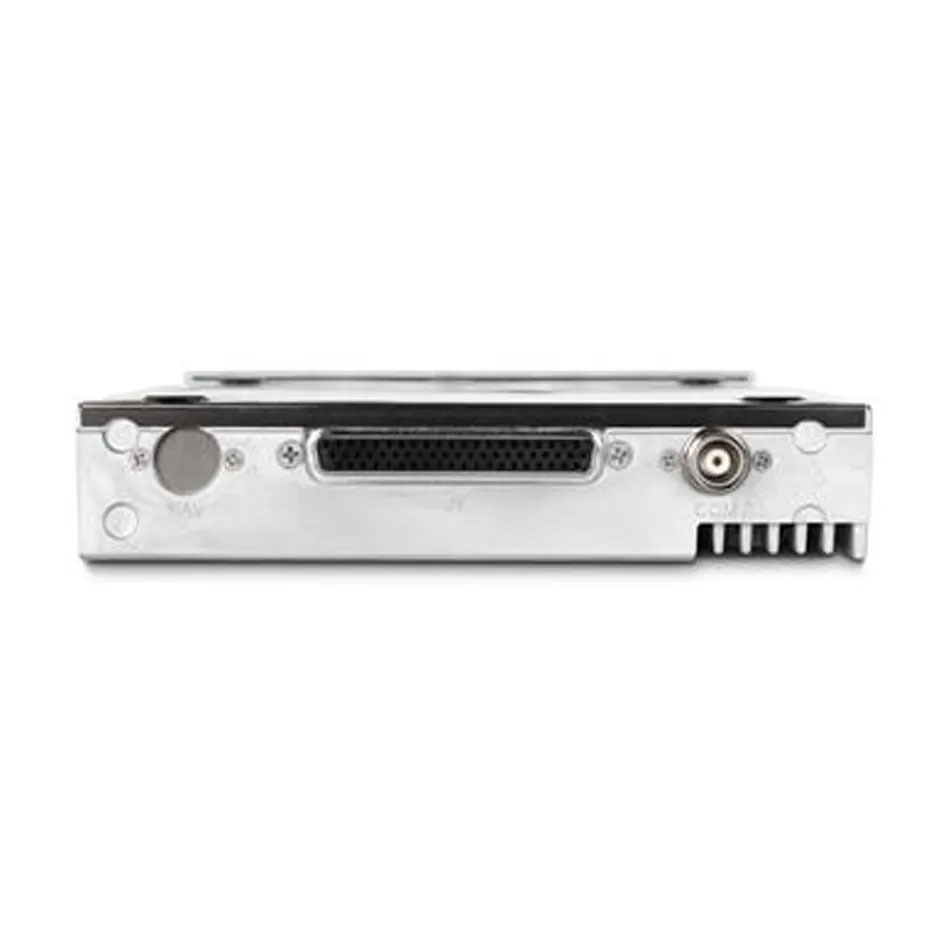

GTR 205xR Remote COM Radio for Experimental Aircraft

Performance:

Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
Frequency range: 118.000 to 136.992 MHz
Transmit power: 10 watts
Input voltage range: 9 to 33 VDC
Operating temperature range: -20 to +55 C

Physical:

Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
Weight: 2.0 lbs (1 kg), unit only; 2.6 lbs (1.4 kg), with mounting rack and connectors
Depth: 10.32″ (26.21 cm) behind panel, including mounting rack and connectors

• GTR 205xR
• Installation rack
• Connector kit
