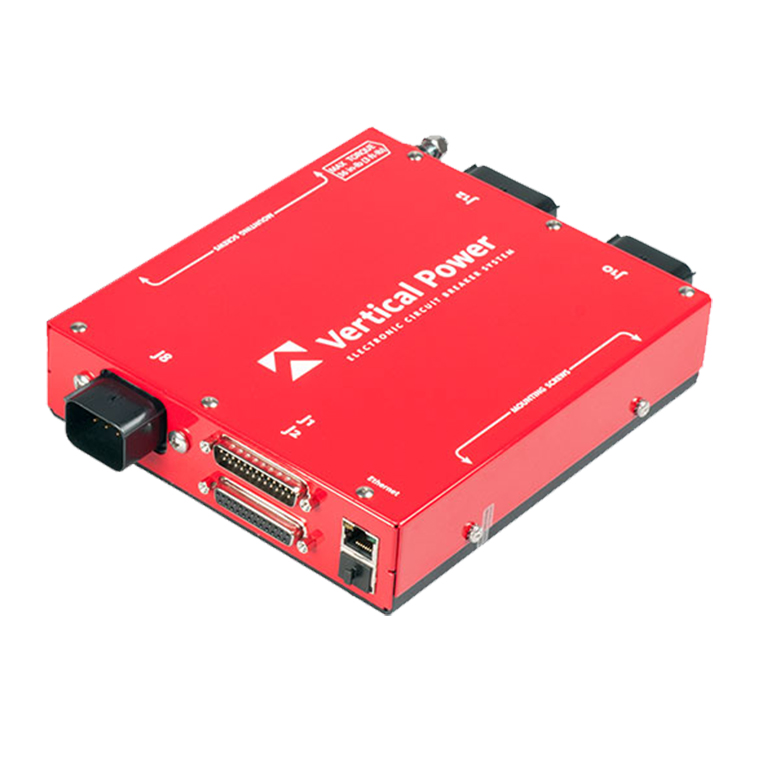

The Vertical Power VP-X Electronic Circuit Breaker System gives you an unprecedented level of detail and control of your electrical system, while at the same time greatly simplifying wiring. With flap, trim and other functions built right into the VP-X, you just wire directly from the VP-X to each electrical device. You no longer have to install circuit breakers, bus bars, relays, trim and flap modules, shunts, e-bus diodes, or other complex wiring on the back side of the instrument panel.

VP-X Advantages

  • Wire from the VP-X directly to each electrical device
  • Detect short circuits, over-current faults, open circuits (no current draw)
  • User-configurable circuit breaker values for each circuit
  • Backup circuit capability for critical avionics
  • Solid-state design – no arcing, no moving parts

EFIS Integration

  • Visually monitor the health of your electrical system
  • View and control the status of individual circuits
  • Immediate notification of circuit faults with the ability to quickly respond
  • Displays for individual and total current draw, main battery voltage, aux battery voltage (if installed), trim position, flap position, and starter engagement

Flap Control

  • Built-in solid-state flap motor control
  • Intermediate flap stops or momentary control
  • Flap over-speed warnings
  • Flap motor run-on protections
  • Disable the flap down switch above a specified airspeed
  • Backup flap controls on the EFIS
  • Flap position display on EFIS

Trim Control

  • Built-in solid-state trim motor control
  • Runaway trim protection
  • Variable-speed pitch trim based on airspeed
  • Backup trim controls on the EFIS
  • Trim position display on EFIS

Switch Inputs

  • Each switch is configurable to control one or more electrical devices
  • Flexibility to use any style of panel-mounted switch

Wig-wag Control

  • Built-in landing light wig-wag control
  • Adjustable warm-up period
  • Landing lights, when turned on, are steady on the ground then automatically pulse when the aircraft is in the air

Alternator Protection

  • Alternator over-voltage protection
  • Single or dual alternator support

Starter Protection

  • Starter disable when engine running
  • Starter engaged annunciator on EFIS

Interfaces

The VP-X requires an EFIS for alarm and status display. The currently supported systems include:
• Advanced Flight Systems 3400s, 3500s, 4500s, 5500s, 5600s
• Grand Rapids Technologies HX and Sport SX
• MGL Avionics Voyager/Odyssey Gen II/MGL Avionics Xtreme
• Garmin G3X
• Dynon Skyview

Software Updates and Setup
Software updating and system configuration are performed using a PC application that runs on Windows and connects to the VP-X via an Ethernet cable.

Weight Analysis
The VP-X weighs 1.9 pounds. Depending on the aircraft and the way it is outfitted, the VP-X comes in about net-neutral or a few pounds of weight savings.

NOTE: All Vertical Power orders are subject to a 2-week factory lead time



Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Vertical Power VP-X” Cancel reply

You must be logged in to post a review.

VP-X Specs

Power: 6-32 volts DC, 70A max continuous
Weight: 1.9 lbs
Mounting: Includes mounting bracket which attaches on side of VP-X. User can fabricate own mounting bracket as well.
Connectors: Three power connectors, Ethernet for configuration, and two 25-pin d-sub connectors
Operating Temperature: -25 to +85 deg C
